5000RPM R23.5mm K38 Hollow Shaft Incremental Encoders

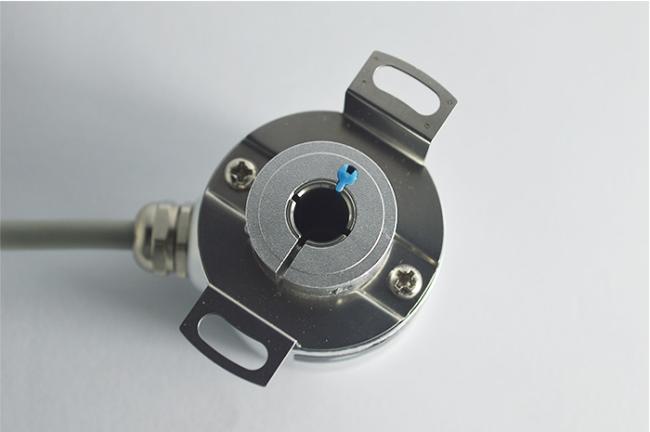

K38 hollow shaft incremental encoder thickness 28mm blind hole 8mm voltage output
Simple Instructions for Encoder
Sensing basic : photoelectric
Pulse per turn:50ppr to 16384ppr
Hollow shaft diameter 6mm,6.35mm, 8mm
Through hole or blind hole shaft
Protection level grade IP50 or IP65
Circuit signal output: NPN, PNP, Voltage output, Push-pull, Line driver output
Resolution(PPR):Min 50ppr, Max 16384ppr
Output Phase: A,A+B, or ABZ or A+B+Z+A-B-Z-
Gross weight 140 grams
Slew speed 5000 round per minute

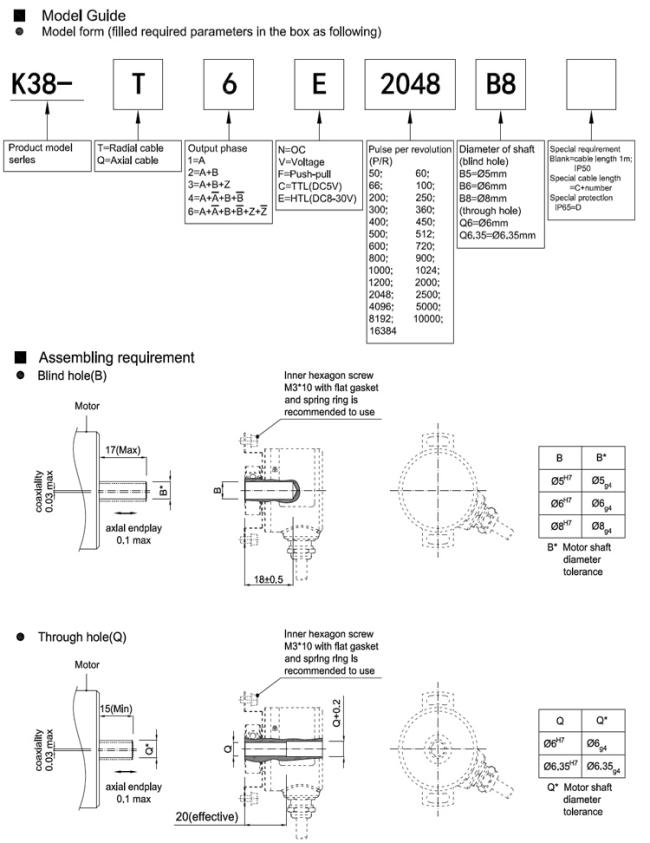

Feather of K38 encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 38mm |
| Thickness | 38mm |
| Installation dimension | R23.5mm(spring plate 38T45) |
| Hollow shaft type | blind hole ; through hole |
| Hollow shaft diameter | 5mm,6mm,6.35mm;8mm |
| Resolution | 50;60;66;100;200;250;256;300;360;400;450;500;512;600; |
| 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384 | |
| Output phase | Phase A,B,Z A- B- Z- |
| Environmental temperature | Operating temperature: -20~+90° (Non icing) |
| Storage temperature: -25~+100° (Non icing) | |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Shell | Die cast aluminum |
| Consumption current | 100mA Max |
| Shaft Load | Radiel: 40N; Axial:20N |
| Top REV | 5000RPM ;IP65≤3000r rpm |
| Insulation strength | AC500V 60s |
| Shaft Material | Stainless steel |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually |
| Shock(endure) | 490m/s2,11 ms three times for X,Y,Z direction individually |
| Protection grade | IP50 ; IP65 |
| Cable length | 1000mm |
| starting torque | less than 9.8X10-3 N.m |
| Intertia moment | less than 6.5x 10-6kg.m2 |
| package | Carton box |
Production date
3-5 working days for sample after full paid
7-15 days for mass production after full paid
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Our Service
- Quick response once received customer’s quotation query
- Professional engineer team, to solve your problems at any time
- Strictly inspection before shipment
- Various encoder models to be selected
- Short lead time
- High quality standard
Signal Circuit of encoder
1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.
An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.
2. PNP output
The PNP output is an interface based on an output circuit with a PNP transistor.
3. Push-Pull output(HTL)
High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.
“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.
4. TTL RS-422 output
In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.
The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
