Scrap Tyre Pyrolysis To Fuel Oil Machine
Capacity:20TPD,30TPD,50TPD
Reactor Material:Q345R, Alloy Steel, Stainless Steel
Reactor Thickness:16mm, 18mm
Total Weight:30-40 tons (Varies by Design and Capacity)
Working Power:15-60KW(Varies by Design and Capacity)
Labor Qty Require:2-4 Persons for per set machine, more machine, fewer labors

scrap tire pyrolysis plant can turn waste tyre to fuel oil with latest pyrolysis technology. Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.

 Pyrolysis machine advantage

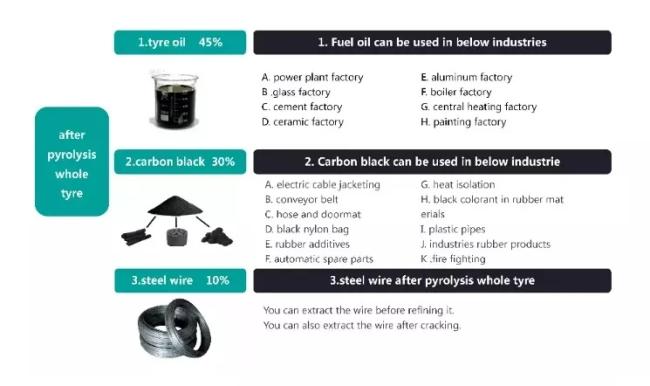

1. Oil yield is about 40%--45% for waste tires recycling,and more for PP,PE,PMMA,etc.

2. Rapid condensers and large cooling area,assure you to get much more and higher quality oil.

    Diversiform cooling system can be choosen according to client's willingness.

3. Desulfurization and dedusting system -four levels dust processing system make sure to reduce the

   population and the output smoking is the spray,that'll be more environmental protection.

4. Double tail-gas recycling and burning system will save more energy.

5. Q245R/Q345R boiler plate, high temperature resistance, thickness reaches 14mm—20mm,for

    4-7 years lifespan with burning coal as fuel.

6. Optional auto feeder and carbon black discharge elevator, high automation, saving time and labors.

7. Eco-friendly,safety,wastes recycling and high profit are the most important shining points.

Main technical characteristics

Auto-feeder(optional device)

1. 50 ton hydraulic pressure help feeding more raw materials.

2. The diameter is 1.4m. It can feed all kinds of raw materials, including plastic, packages of plastic, truck tire, car tire, or tire pieces after cutting.

3. Save labor, save time.

4. After finishing production it can feed raw material instead of waiting the main furnace to be cooled.

Oil separator

1. Water from raw material will be separated here.

2. Water sealing design prevent tempering. Ensure saftety.

3. Heavy oil will be collected here.

Cooling system

1. Coil pipe cooling system

there are 24 Ø159 pipes lied in the water pond,each pipe 6 meters long, oil gas can be cooled in larger area and longer time,thus get higher oil yield

2. Vertical condensers

we supply 4 condensers, each has 44 pipes inside the condenser. Saves space and looks more neat and beautiful.

Anti-back fire device

1. Little residual gas can not be cooled. It will recycle these gas to furnace burned to heat the main furnace .

2. Water sealing disign will prevent tempering. Ensure safety.

Double dust removal device

1. Dispose of flue gas caused by heating main furnace  using coal, wood, oil or natual gas.

2. Environment protection.

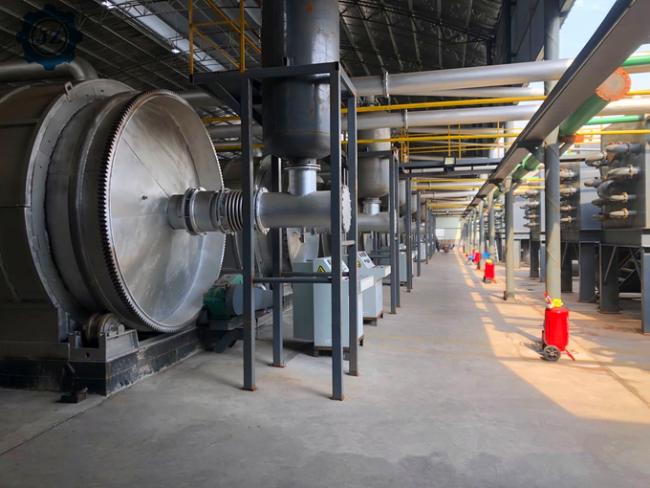

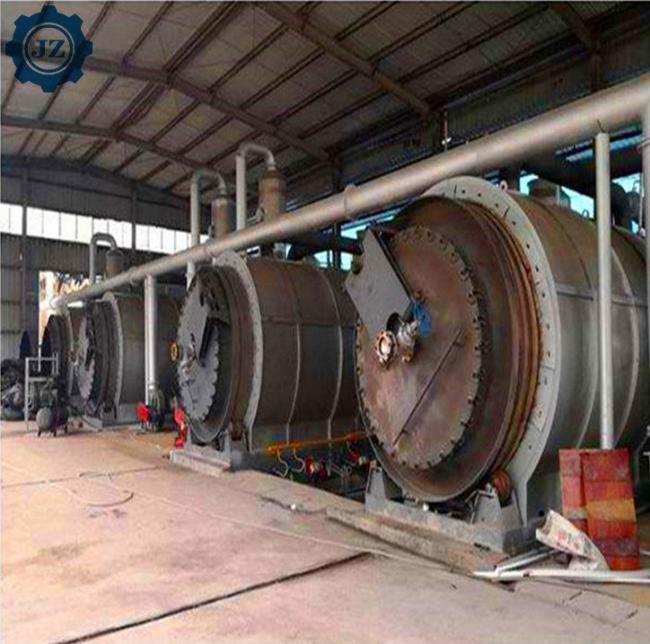

Installation Project
