High Temperature Oil Gas Fired Thermic Fluid Heater For Plywood Hot Processing

The organic heat carrier furnace is a new type of special boiler, also known as the heat-conducting oil furnace, with low pressure and high temperature working characteristics, and its heating temperature can reach 340°C in the liquid phase or 400°C in the vapor phase. Any process that requires uniform and stable heating and does not allow direct flame heating can be used in various production occasions where the heating temperature is between 150 ℃ and 380 ℃, and organic heat carrier can be used for heating.

Technical parameters

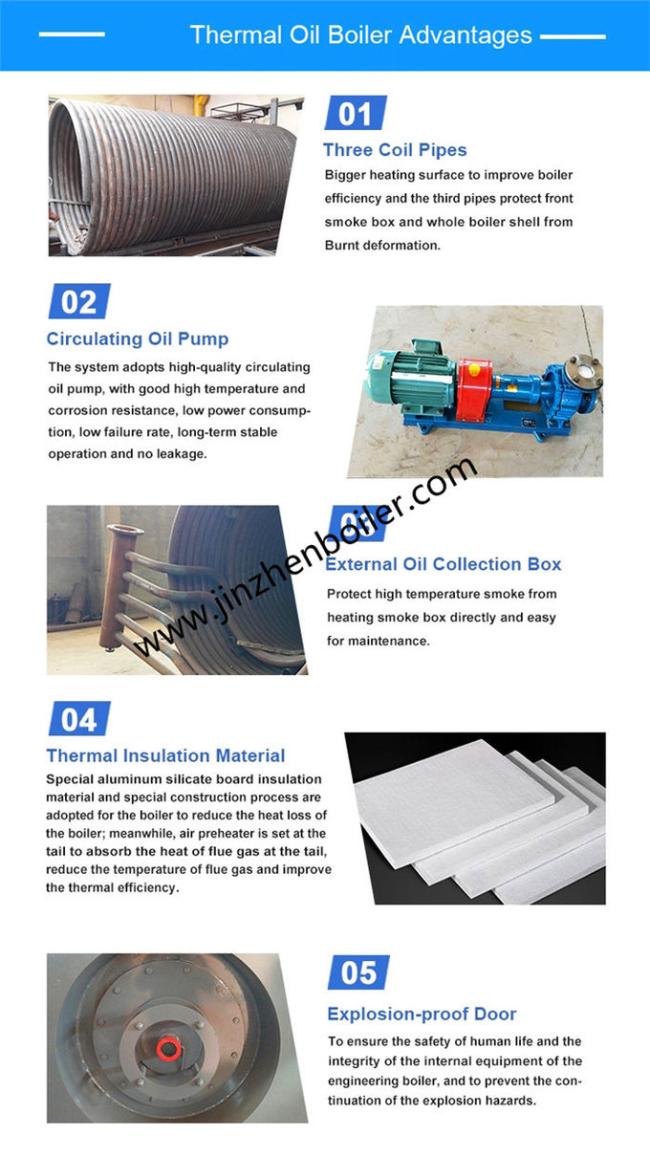

Boiler Advantages
1. High thermal efficiency
The thermal oil boiler is circulation heating in liquid phase, there is no heat loss leaded by condensing, thermal efficiency is high, and the boiler is very safe when operating.
2) The boiler shell use aluminum silicate board for heat preservation, low heat loss.
3) By equipped with economizer, make full use of flue gas heat, decrease the exhaust smoke temperature.

2. Large combustion chamber
The boiler combustion chamber is composed with large diameter coil, enough fuel combustion space, sufficient combustion, high thermal efficiency. Moreover, the boiler adopts positive pressure combustion, improve the combustion efficiency.

3. Excellent coil design
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.

4. Sufficient output
The thermal oil heater adopts horizontal type three pass structure, improve the heat utilization efficiency. Large heating area, good heat transfer, achieve high thermal efficiency and sufficient output.

5. Multi-function safety explosion-proof equipment
Equipped with explosion proof equipment at the back of boiler, prevent deflagration in furnace, discharge high energy, to ensure the boiler operate safely and efficiently.

6. Perfect automatic control
The hot oil boiler adopts PLC full automatic intelligent control cabinet and interlock protect system, has the protect function on oil temperature, medium temperature, pressure, etc, adjust conveniently.

7. Convenient installation
The organic heat carrier furnace is package boiler, compact structure, covers small area, convenient for installation and maintenance.

Boiler Application

Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the thermal fluid heater could be widely used in a variety of industrial heating process.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry
