Easy To Instal Used Wood Pellet Biomass Coal Fired Steam Boiler Price For Plywood Industry
Easy to instal used wood pellet biomass coal fired steam boiler price for plywood industry
General introduction

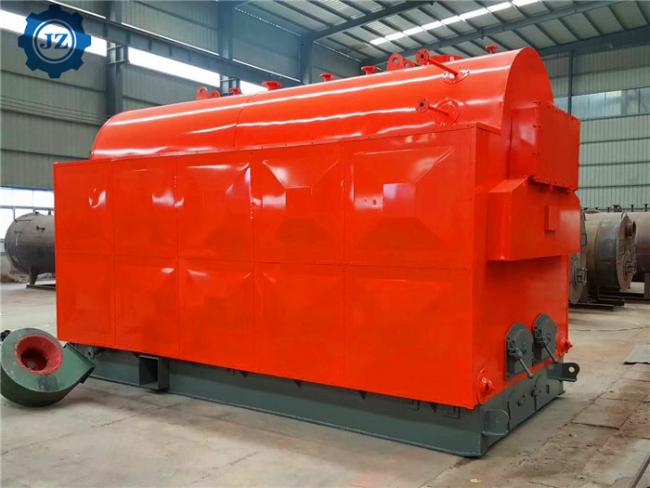

DZH type active grate biomass steam boiler has a wide range of fuel sources. It is a renewable green energy source. It contains almost no sulfur and less ash. Its growth process can absorb all the CO2 generated by the combustion process and achieve zero CO2 emission. Biomass energy will gradually replace coal and become one of the main energy sources. Biomass fuels include straw, wood shoots, bamboo wood processing waste, grain shell skin, fruit shells, sugar residue, oil residue, and so on.Compared with coal-fired boilers, biomass fuels are less expensive and significantly reduce operating costs.
1. Single cylinder, fire tube (Spirally corrugated tube) and water tube.
2. Packaged style
3. Fuel can be wood,firewood, logs,waste.etc.
4. Hand fired type.
5. Capacity 1Ton-6Ton/HR
6. Design pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar)
7. Stem temperature:184C,194C,204C
8. Equipped with full set auxiliaries, after simple installation, the boiler can operate.
Technical features:
1.Clean coke is a solid fuel, low sulfur dioxide emissions after combustion, in line with national environmental requirements.
2.Use of mechanical ventilation, complete combustion, Powerful, high thermal efficiency.
3.Cast carbon longer interval, low labor intensity, simple, safe and reliable.
4.Capacity than the same fuel (gas) boiler-time low investment, low operation cost, is an economical and environmentally friendly boiler type.
5.Application of fuel: coke, anthracite block, the installation of desulfurization equipment for coal for the same.
6.Boiler capacity of 1-4T / H (0.7-2.8MW).
| Model Item |
DZH0.5-0.7-AII DZH0.5-1.0-AII |
DZH1-0.7-AII DZH1-1.0-AII DZH1-1.25-AII |
DZH2-0.7-AII DZH2-1.0-AII DZH2-1.25-AII DZH2-1.6-AII |
DZH4-1.25-AII DZH4-1.6-AII |
| Rated evaporation capacity (t/h) |
0.5 | 1 | 2 | 4 |
| Working pressure(Mpa) |
0.7/1.0 | 0.7/1.0/1.25 | 0.7/1.0/1.25/1.6 | 1.25/1.6 |
| Rated steam temperature(℃) |
170/184 | 170/184/194 | 170/184/194/204 | 194/204 |
| Feed water temperature(℃) |
20 | 20 | 20 | 20 |
| Effective area of grate(m2) |
1.28 | 2.1 | 3.36 | 5.2 |
| Fuel consumption (Kg/h) |
76 | 150 | 301 | 602 |
| Exhaust flue gas temperature(C) |
165 | 165 | 165 | 165 |
| Thermal Efficiency (%) |
80 | 80 | 80 | 80 |
| Size(m) | 3.2x 2.0x 2.6 | 4.1x 2.2x 2.9 | 4.7x 2.3x 3.2 | 5.6x 2.5x 3.5 |
| Weight (t) | 8 | 12 | 15 | 22 |
This wood steam boiler has high automation level, automatic adjustment of boiler feed water, high and low water level alarm, low water level interlock protection, and interlocking protection of lead and blower. Auxiliary auxiliary equipment is complete.

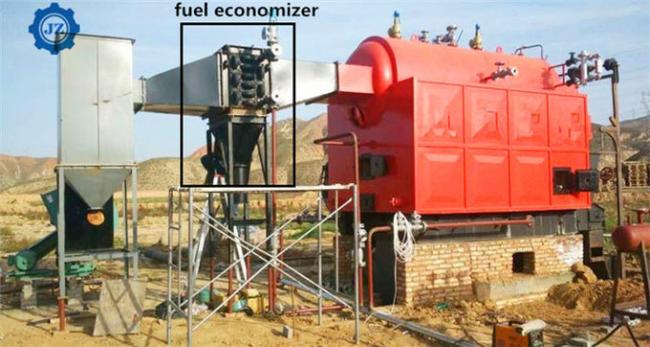

Boiler accessories layout
DZH series fixed grate biomass steam boiler is widely used in hospitals, schools, textile mills, garment factories, large supermarkets, garment factories, dyeing factory, hotel, dining room, restaurant, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packaging plant, building materials factory, paint factory, swimming pool and other places of the enterprises and institutions.
