3ton 3000kg Industrial High Efficiency Coal Fired Steam Boiler For Oil Refinery Plant
3ton 3000kg Industrial High Efficiency Coal Fired Steam Boiler For Oil Refinery Plant
DZH series steam boiler is manual operation boiler which adopting manual fuel feeding, manual slag removing. The fuel can be firewood, wood logs, biomass pellets, peanuts shell, grain shell, etc. Equipped with special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.), it can realize automatic fuel feeding, automatic ash removing. It is the most popular products in Southeast Asia, Central Asia, Africa.
Model: Coal fired steam Boiler
Structure:Three Pass Single Drum
Fuel:Coal, Biomass, Wood, Chip, Husk, Sawdust, Jute, Shell, Waste Solid Fuel etc.
Capacity: 1 - 20 ton/h (1ton,2ton,4ton,6ton,8ton,10ton,15ton,20ton)
Pressure:0.7/1.0/1.25/1.6/2.5Mpa (7Bar/10Bar/12.5Bar/16Bar25Bar)
Temperature:170/184/194/204/225 C
Application:Food and Beverage,Textile,Plywood,Rice Mill,Chemical,Paper Mill,Rubber Plant etc
Structure
Combustion process:
The fuel enters the furnace and burns on the grate. The flue gas from the production enters the convection tube bundle on both wings along the bottom of the boiler barrel through the smoke outlet on the middle partition wall, enters the threaded smoke pipe through the front smoke box, passes through the dust collector, and is pumped and discharged into the atmosphere through the chimney by the induced draft fan.
Boiler feature
1,Horizontal,3 pass and large furnace
Ensure the sufficient combustion.
The large diameter boiler increase the heating surface to ensure the high thermal efficiency.
2,The spirally corrugated tube
Strength the heat transfer and improve the thermal efficiency .The smoke in the tube has the distribution effect,the dust not easy to deposit ,the tube can cleat by itself.
3,High temperature resistance refractory brick
The furnace wall is poured by the heat resistance concrete and high temperature resistance refractory brick,decrease heat loss,increase the boiler thermal efficiency.
4,The economizer
Made of ND corrosion resistance steel,make full use of gas heat .reduce the exhaust temperature improve thermal efficiency.
| Model Item |
DZH0.5-0.7-AII DZH0.5-1.0-AII |
DZH1-0.7-AII DZH1-1.0-AII DZH1-1.25-AII |
DZH2-0.7-AII DZH2-1.0-AII DZH2-1.25-AII DZH2-1.6-AII |
DZH4-1.25-AII DZH4-1.6-AII |
| Rated evaporation capacity (t/h) |
0.5 | 1 | 2 | 4 |
| Working pressure(Mpa) |
0.7/1.0 | 0.7/1.0/1.25 | 0.7/1.0/1.25/1.6 | 1.25/1.6 |
| Rated steam temperature(℃) |
170/184 | 170/184/194 | 170/184/194/204 | 194/204 |
| Feed water temperature(℃) |
20 | 20 | 20 | 20 |
| Effective area of grate(m2) |
1.28 | 2.1 | 3.36 | 5.2 |
| Fuel consumption (Kg/h) |
76 | 150 | 301 | 602 |
| Exhaust flue gas temperature(C) |
165 | 165 | 165 | 165 |
| Thermal Efficiency (%) |
80 | 80 | 80 | 80 |
| Size(m) | 3.2x 2.0x 2.6 | 4.1x 2.2x 2.9 | 4.7x 2.3x 3.2 | 5.6x 2.5x 3.5 |
| Weight (t) | 8 | 12 | 15 | 22 |
Boiler Details
Application for biomass steam boiler
Wood fired steam boiler is suitable for painting room, drying box, drying tower painting line and other purposes.It is especially suitable for central heating in urban residential areas, industrial production, enterprises and institutions, schools, hotels, bath centers and other places where heating, hot water and steam are needed.
Biomass Fuel Materials
1. Rice husk 2. Straw
3. Wood Chips 4. Peanut Shells
5. Coconut Shells 6. Palm Shells
7. Bagasse 8. Biomass Pellet
Warranty and after-sale service

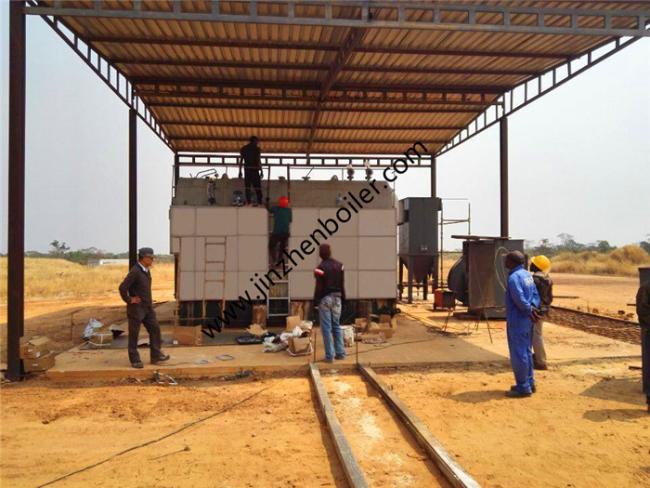

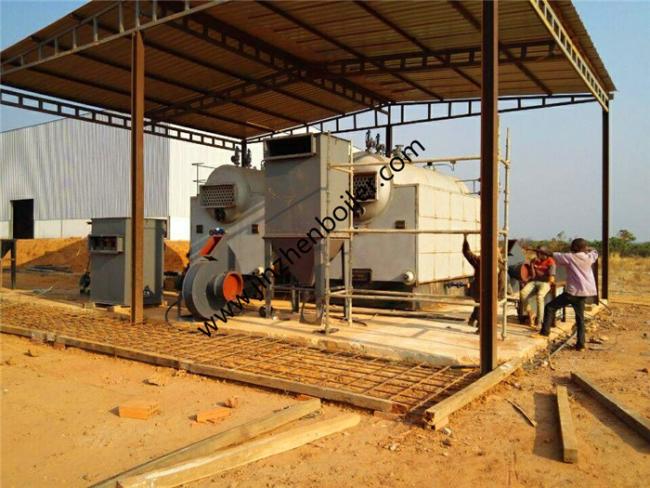

1. Assist clients to prepare for the first construction, and also can arrange engineer on-site instruction of installation and commissioning
2. Install and debug the equipment;
3. Train the first-line operators, application of theoretical learning + product cognitive learning + examination + practical repeated operation learning + phased procuratorial learning effect
Factory assurance:
1. One year quality assurance system;
2. Provide professional and high-quality parts according to the factory price;
3. It can be designed and produced according to the user's voltage frequency;
4. 100% tested before delivery;
5. Skid-mounted complete system available 180-- 3000 kw;
6. Complete system fixed on Skid rack available 180-- 3000 kw;
7. Engineer on-site instruction of installation and commissioning available, and remote guidance and video services.
