Industrial Biomass Coal Fired Thermal Oil Heater Price For Latex Nitrile Glove Factory

Industrial Biomass Coal Fired Thermal Oil Heater Price For Latex Nitrile Glove Factory

YGL series vertical type thermal oil heater is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (350℃). It is vertical type boiler, the combustion equipment is moving grate, could feed manually or mechanically. The fuel could be both coal and biomass fuels, includes wood, bagasse, straw, peanut shell, rice husk, etc.

Coal/Biomass Fired Thermic Fluid Heater
Rated capacity:120kw-14000kw
Max working temperature:280℃;320℃
Design fuel:coal,biomass, wood, firewood, solid fuel,etc
Application:plywood factory,asplat bitumen factory, latex nitrile glove factory,textile factroy,plastic factory,refinery industry, etc.

Techinical specification

Technical Advantages1. Thermal oil boiler can adopt low quality thermic oil.
2. The spiral diameter can be customized as per your request.
3. The furnace structure can be designed based on different fuels, strong adaptability of different fuels.
4. The grate could be designed as fixed and moving, based on the fuel properties.
5. Complete operating control and safety monitoring devices, ensure safe and reliable operation
6. Large diameter combustion chamber, combustion sufficient and improve thermal efficiency.
7. Adopts advanced coil design and three pass structure, operate reliable.
8. Saving energy and reducing consumption, compared with the steam boiler it can save energy 1 to 1.5 times.

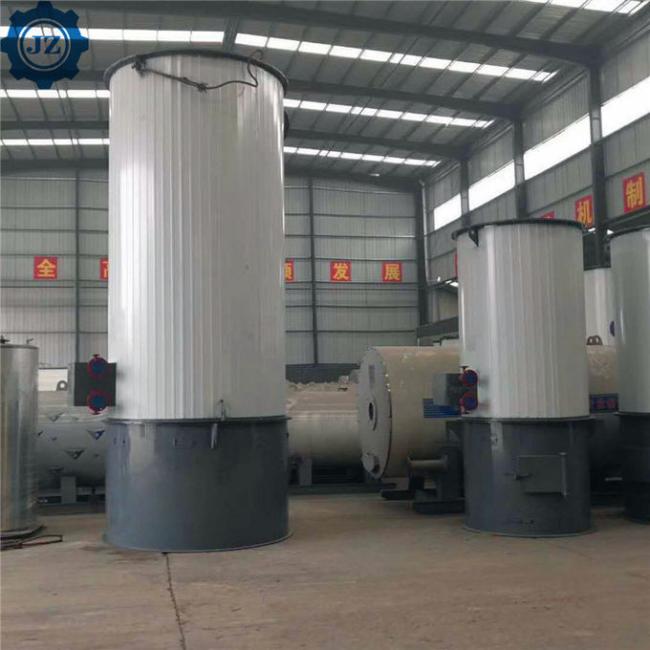

Boiler Picture

Boiler Application
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the thermal oil heater could be widely used in a variety of industrial production.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry
