700KW Coal Fired Vertical Thermal Fluid Heaters , Biomass Thermal Oil Boiler Heating System

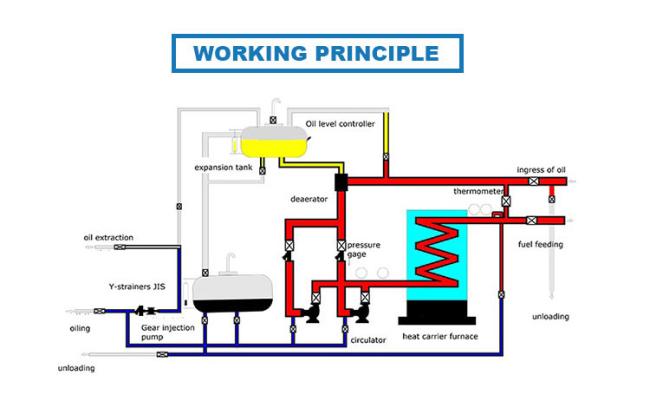

Powered by circulation pumps, heating as medium, organic heat transfer oil flow out from boiler into equipments which need heat energy, transferring heat energy, and then flow back to boiler proper. The organic thermal oil flow through the whole system and transfer heating energy to heat the equipment.

Model: YGL-120MA,YGL-230MA,YGL-350MA,YGL-470MA,YGL-700MA,YGL-930MA,YGL-1200MA,YGL-1400MA
Rated thermal power: 350kW, 500kW, 700kW, 1000kW,1200kW, 1400kW, 2000kW
Rated working pressure: 10 bar
Max. temperature: 350°c
Design fuels: solid fuels,coal, charcoal, anthracite coal, coal powder, pulverized coal, lignite coal
charcoal, wood, wood logs, firewood, wood chips, wood pellets, wood shredded, wood residues, mixed wood, wood cuttings, wood shavings, wood strips, wood scrap, chopped wood, wood briquettes, wood waste, biomass fuels, rice husk, rice hull, straw pellets, crop pellets, corncobs
Application:plywood factory,asplat bitumen factory, latex nitrile glove factory,textile factroy,plastic factory,refinery industry, etc.

Techinical specification

Technical Advantages

1. Thermal oil boiler can adopt low quality thermic oil.
2. The spiral diameter can be customized as per your request.
3. The furnace structure can be designed based on different fuels, strong adaptability of different fuels.
4. The grate could be designed as fixed and moving, based on the fuel properties.

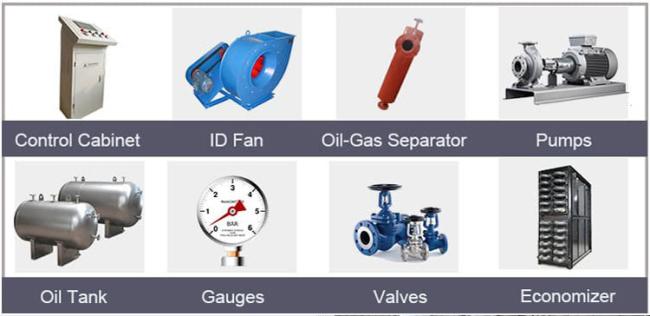

5. Complete operating control and safety monitoring devices, ensure safe and reliable operation
6. Large diameter combustion chamber, combustion sufficient and improve thermal efficiency.
7. Adopts advanced coil design and three pass structure, operate reliable.
8. Saving energy and reducing consumption, compared with the steam boiler it can save energy 1 to 1.5 times.

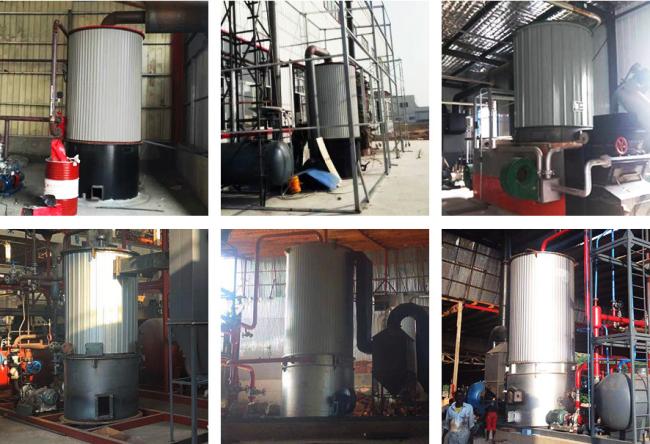

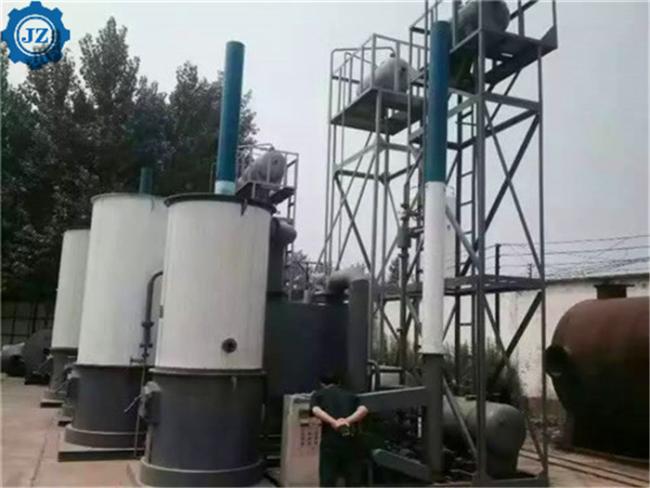

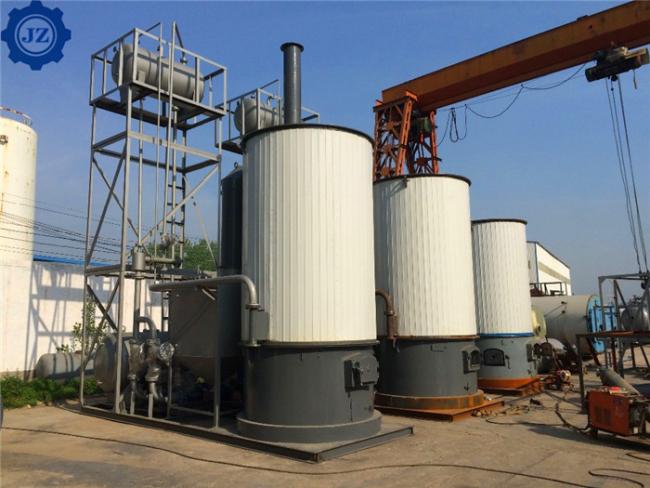

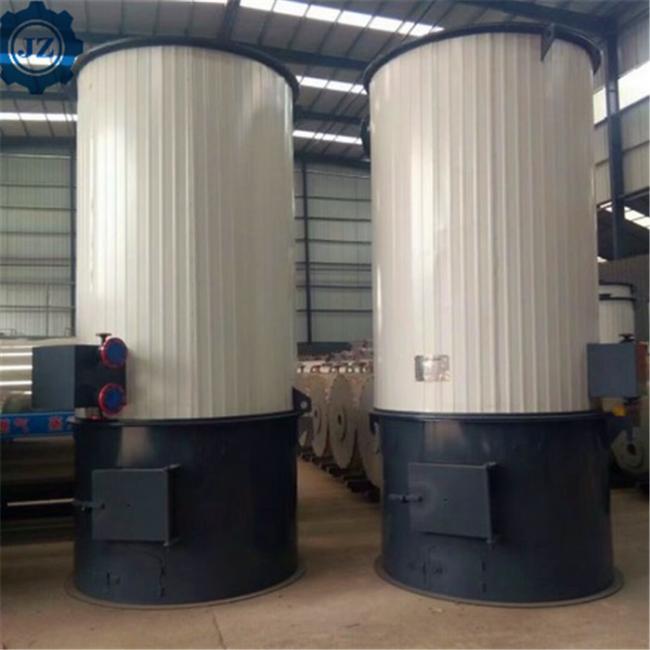

Boiler Picture

Boiler Application
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the thermal oil heater could be widely used in a variety of industrial production.Adaptable Industrial Fields
1.Chemical Industry -- polymerization industry ,oil industry, reaction tank,distillation ,enrichment
2. Plastic industry --- plastic and squeeze to finalize the design
3. Textile industry -- resin stenters ,dyeing machine and the dry room ,high temperature machine,roller.
4.Rubber industry - rubber vulcanization heating
5.Food industry -- cooking dry,vegetable oil refining
6.Wood industry -- heating to finalize the design of chipboard sandwich plate ,wamu board, fiber
7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation
8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc
