0.7t 50Hp 700kg Industrial Gas/Oil Fired Vertical Steam Boiler, Steam Generator For Food Processing Machinery
0.7t 50Hp 700kgIndustrial Gas/Oil Fired Vertical Steam Boiler, Steam Generator For Food Processing Machinery

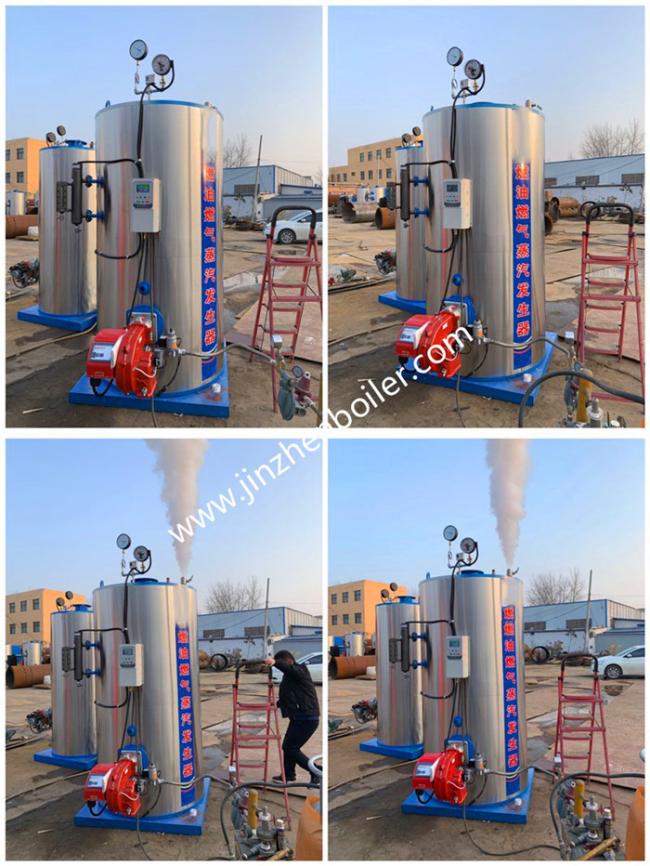

Vertical Steam Boiler
Capacity :0.1-1t/h
Pressure :0.4/0.7Mpa
Fuel :Heavy oil,Furnace Oil, diesel, natural gas, LPG, etc.
Application : Pharmacy, dying& textile, paper making,farming, rubber processing, food and beverage, plastics and foam,building materials,chemical hotels, Light industry
Vertical steam boiler is an exquisite small steam capacity (0.1-1tph) heating equipment. It is once-through three-pass structure boiler, has the advantages of temperature rise up quickly and high efficiency. The flue gas has three-pass heat transfer, so the heat loss is low, and guarantee high thermal efficiency.
Boiler Application
Technical Parameters
| Model | LSS0.1-0.4-Y | LSS0.2-0.4-Y | LSS0.3-0.4-Y(Q) | LSS0.5-0.4-Y(Q) | LSS0.7-0.4-Y(Q) | LSS1-0.7-Y(Q) | |||
| (Q) | (Q) | LSS0.3-0.7-Y(Q) | LSS0.5-0.7-Y(Q) | LSS0.7-0.7-Y(Q) | LSS1-1.0-Y(Q) | ||||
| Rated steam capacity(t/h) | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1 | |||
| Rated steam pressure(Mpa) | 0.4 | 0.4 | 0.4/0.7 | 0.4/0.7 | 0.4/0.7 | 0.7/1.0 | |||
| Steam temperature(C) | 151 | 151 | 151/170 | 151/170 | 151/170 | 170/184 | |||
| Supply water temperature(C) | 20 | 20 | 20 | 20 | 20 | 20 | |||
| Thermal efficiency(%) | 89 | 89.2 | 90.6 | 90.6 | 93.9 | 92 | |||
| Fuel available | Light diesel oil, heavy oil, natural gas | ||||||||
| Motor General power(kw) | 1.1 | 2.6 | 2.66 | 2.96 | 3.2 | 4 | |||
| Fuel consumption | Light oil (Kg/h) | 6.6 | 14 | 20.62 | 34.37 | 46.53 | 67.88 | ||
| Natural gas (Nm³/h) | 9 | 19 | 24.98 | 41.69 | 56.22 | 82.61 | |||
| Boiler weight(t) | 0.83 | 1 | 2.113 | 2.657 | 3.64 | 3.75/3.9 | |||
| Boiler size(m)(L×W×H) | 0.8×1.94 | 0.9×2.7 | 1340×1300×2510 | 1540×1500×2860 | 1900×1800×3040 | 1900×1800×3310 | |||
| Note: 1. The hot value of light oil: 10300kal/Nm3, hot value of natural gas :8500kcal/Nm3. | |||||||||
| 2. Parameter is for reference only, if any changes should follow actual drawings. | |||||||||
Performance Advantages
1. Fast Steam Generation
The steam boiler start up quickly, and could get stable temperature and enough pressure within a short time, steam is generated quickly.
2. High Thermal Efficiency
1) The small steam boiler is advanced once-through structure, and the small water capacity achieves fast heat absorption.
2) The steam generator adopts three-pass structure, absorbs the thermal expansion effectively.
3) Heat transfer fast ,reduce the heat loss , guarantee boiler efficiency
3. Advanced Burner
Equipped with high quality and reliable burner & original import , high combustion efficiency, low harmful gas emission and noiseless operation.
4. Safe Operation
Adopts automatic controller, operate conveniently and safely. The boiler has interlock protection system on water level, steam temperature, pressure, and flame out, etc.
5. Compact structure, low cost
The boiler size is minimized based on the precision calculation, on the premise of guarantee the boiler sufficient output, can save space and cost for user .
6. Convenient installation
The vertical steam boiler is packaged delivery when leaving factory, so this boiler running only need to connect the water power, electric power, oil/ gas supply tube, and blowdown pipeline.ect

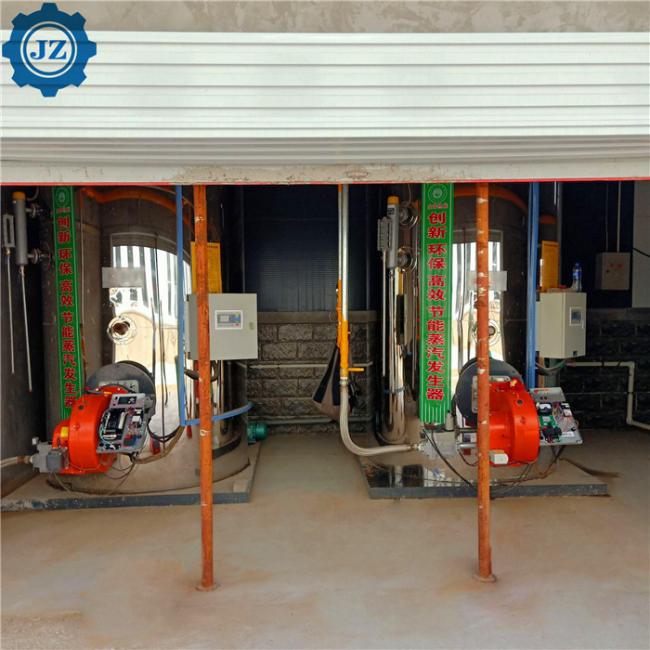

Boiler Application
LSS series vertical steam generator can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. Even they can be used as a power plant boiler start-up.
