High Security Welded Razor Wire Mesh Straight Blade Razor Ribbon Fencing
High Security Anti-climb Military Welded Razor Barbed Mesh Fence/Razor Barbed Wire Fence
Welded Razor Wire Description
» Material:
1. hot galvanized sheet and stainless steel sheet 304 316 and so on
2. Galvanized wire(Electro galvanized and hot dipped galvanized)
» Specifications
Welded Razor Wire Mesh Hole Type
Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm
Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.
Welded Razor Wire Mesh Surface Treatment:
Galvanized Coating:50-60g/m2 , 80-100g/m2 , 200-250g/m2
PVC Coated Color: green,red,white etc.

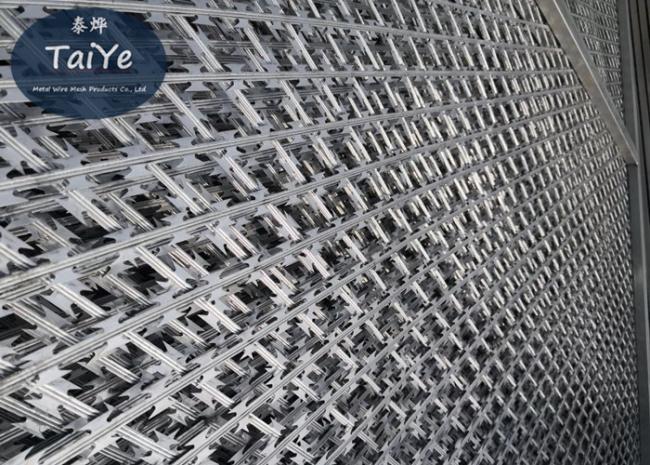

Welded Razor Mesh Fence is a new form of razor barbed wire mesh for security. It with practicality blade and the feature looks very beautiful. It can be used for guard net of fence, doors and windows and also can be used in military.
The specification can be designed as the customers’ need.
| Type | Thickness of Sheet | Wire Diameter | Height | Length | Mesh Size |
|
Diamond Hole Razor Mesh |
0.5mm±0.05mm | 2.5mm±0.1mm | 1.0m-2.4m | 2.0m-10.0m |
100mmx200mm 150mmx300mm |
|
Square Hole Razor Mesh |
150mmx150mm 200mmx200mm 300mmx300mm
|
||||
| Special Specification can be produced according to your request | |||||
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request. | ||||||
