450mm Galvanized 3 Clips BTO 22 Razor Wire Concertina Cross For Security
Galvanized 450mm 3 clips BTO-22 concertina cross razor wire/razor barbed wire
Product introduction

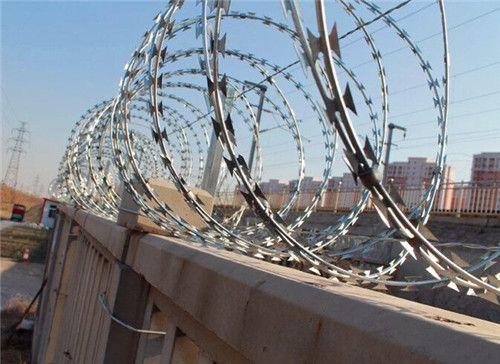

Razor Barbed Wire Mesh is a new kind of protective fencing with such advantages and beautiful appearance, economical cost and practicality, and convenient construction. It plays the role of protection in mines, gardens and apartments, frontier and sentry defence, and enclosure of prisons.
Most Population Hot Dipped Galvanized BTO22 Razor Barbed Wire for Shipping Protect is named as its Hot Dipped Galvanized Material and the Razor blade style is BTO22.
From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire.
Common specifications
| Size | Blade thickness | Wire dia | Barb length | Barb width | Spacing |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22 ±1 | 15±1 | 34 ±1 |
| BTO-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21 ±1 |
100±2 |
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
Compare the three material quality:
Electric Galvanized Razor Barbed Wire<Hot Dipped Galvanized Razor Barbed Wire<High Galvanized Razor Barbed Wire.
Related Products:Razor wire Barbed wire Welded fence Chain link fence
|
