BT022 CBT60 CBT65 Galvanized Concertina Razor Wire Cross Razor Or Single Razor
BT022 CBT60 CBT65 Galvanized Concertina Razor Wire Price
1.Product introduction

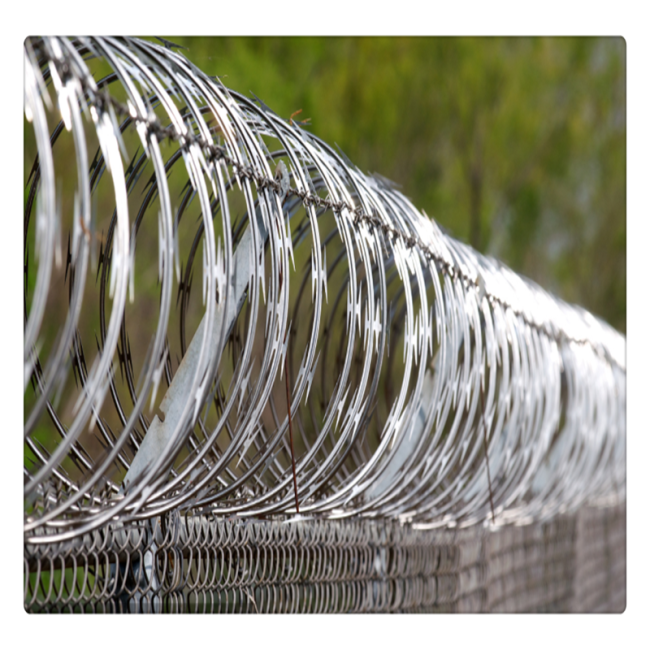

Razor barbed wire is also named concertina coils or razor type barbed wire.It is a new type of guard fence.
Characteristics: With beautiful and sharp blades and strong core wire,razor wire has the features of good deterrent effects,nice appearance,easy installation,economical and practical and other properties.
Application: Razor barbed wire is widely used in apartment house,organization units,prisons,frontier fence,military fields and other sites requiring severe fencing and security.
Classification: Razor wire can be classified into concertina coils,straight type razor wire,crossed type and flat type according to the installation models.
2.Common specifications
| Specification |
Thickness
(mm)
|
Wire Dia.
(mm)
|
Barb Length
(mm)
|
Barb Width
(mm)
|
Barb spacing
(mm)
|
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
| Concertina Coil Specification | |||||||
| Coil Diameter | 300mm | 450mm | 730mm | 730mm | 980mm | 980mm | 1250mm |
| (12inch) | (18inch) | (28inch) | (36inch) | (36inch) | (36inch) | (50inch) | |
| Recommended Stretch Length | 4m | 10m | 15-20m | 10-12m | 10-15m | 8m | 8m |
| Coil Diameter When Stretched | 260mm | 400mm | 600mm | 620mm | 820mm | 850mm | 1150mm |
| Spiral Turns Per Coil | 33 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 |
| Clips Per Spiral | 3 | 3 | 3 | 5 | 5 | 7 | 9 |
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
3.Galvanized razor wire
PVC Coated
4.Package
waterproof paper inner, woven bag outside or with carton for Low price concertina hot dipped galvanized razor barbed wire
5.Application
|
No.of Loops
|
