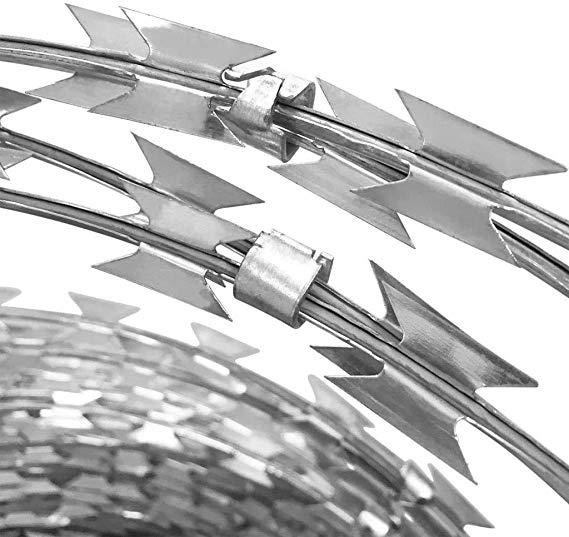

Razor Blade Barbed Fence Security Wire Single Loop Coiled Galvanized / Pvc Coated
Single loop coiled galvanized/pvc coated razor blade barbed fence security wire
Quick Details
Place of Origin:Hebei,China(Mainland).
Brand Name:baituo.
Name:Razor barbed wire
Color:Silver White,green.
Sample:We can offer samples if you want.
Factory:Welcome to visit our factory if you like.
Quality:Meet with your satisfactory.
Application:Isolation protection for pasture boundaries, railways, and highways.
Used in many high security applications, It is typically found in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers,
Governments buildings or other security facilities. Also used for division of railways, highways, etc, as well as
Installation of Razorwire Flat Profile
Installation of Razor Wire (flat profile) is particularly simple. It can either be supported by clipping or wire tying to the surface part way up or alternatively by fitting brackets to the existing fence posts and then running a line of support wire through the top hole of the bracket and weaving it through the Razor Wire.
Either way we can supply you with the necessary vertical uprights, straining wire and bolting to enable self fit to a fence or wall.
2.Common specifications
| Specification |
Thickness
(mm)
|
Wire Dia.
(mm)
|
Barb Length
(mm)
|
Barb Width
(mm)
|
Barb spacing
(mm)
|
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
| Concertina Coil Specification | |||||||
| Coil Diameter | 300mm | 450mm | 730mm | 730mm | 980mm | 980mm | 1250mm |
| (12inch) | (18inch) | (28inch) | (36inch) | (36inch) | (36inch) | (50inch) | |
| Recommended Stretch Length | 4m | 10m | 15-20m | 10-12m | 10-15m | 8m | 8m |
| Coil Diameter When Stretched | 260mm | 400mm | 600mm | 620mm | 820mm | 850mm | 1150mm |
| Spiral Turns Per Coil | 33 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 |
| Clips Per Spiral | 3 | 3 | 3 | 5 | 5 | 7 | 9 |
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire.
Compare the three material quality:
Electric Galvanized Razor Barbed Wire<Hot Dipped Galvanized Razor Barbed Wire<High Galvanized Razor Barbed Wire.
As barbed wire razor wire manufacturer, we have our own factory and lab to guarantee the quality of the products.
1.Pricing: We provide free samples from 1 to 5kg accordingly.The express fee need to be prepaid by the customer before delivering.
2.Delivery Time: Lead-time is around 2-5 working days after we receive the full payment. It varies according to different products and quantity.
If you are interest in our product , Please contact us ,We will be the first time for you to answer.
