Dovetail Straining Wire Clips Razor Clumps Razor Wire Fittings On Welded Gabion Fence
Dovetail straining clips razor clumps on razor wire and welded gabion fence
1.Razor Wire Clips Description
We all know that there are two kinds of razor wire: crossed razor wire and single razor wire, and the essential difference between the two lies in the flexible use of the clips. Clasp is also divided into large, medium and small size, material is also divided into galvanized and stainless steel, and the combination of blade type, so the formation of a unique double helix shape. The clips and the barb of the blade play an equally important role.
2.Razor Wire Clips Application
a.Razor wire
b.Welded Wire Mesh
c.Gabion box
3.Razor Wire Clips Specification
Material: Galvanized and stainless steel
Type: Big open:10.5mm, Height:19mm, Thickness:1.5mm, 2500pieces per carton
Medium: Open:10mm, Height:14mm, Thickness:1.5mm 2500pieces per carton
Small: Open :8.2mm, Height: 13mm, Thickness: 1.5mm 2500pieces per carton
Package: By carton
2. Type2. Suitable BTO-22 Razor Wire Clips Used By Clip Applicator
Material: Galvanized and stainless steel
Type: Open 22mm Height:8.5mm, Thickness:0.8-1.2mm
Package: By woven bag, 50kg/bag.

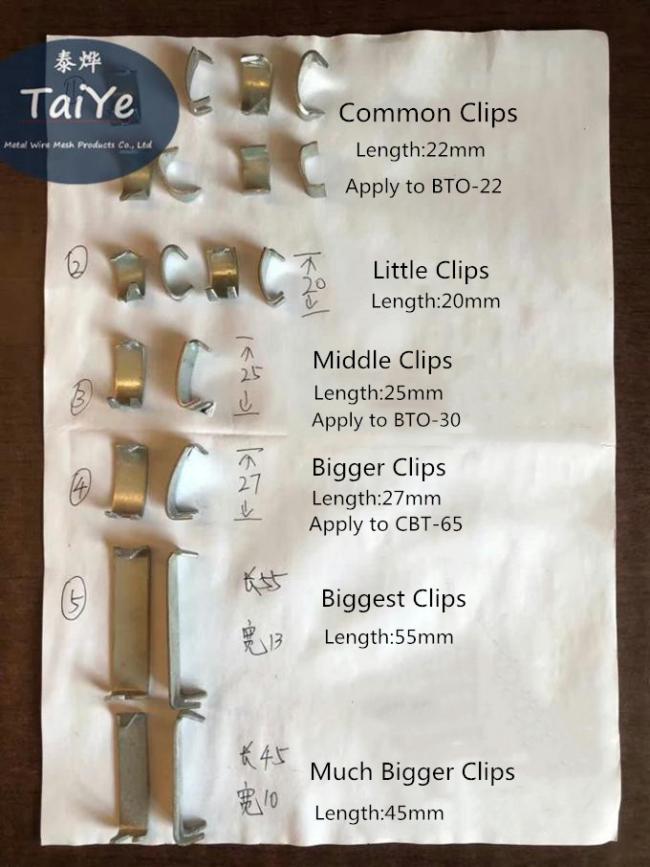

| Item No | Length(mm) | Width(mm) | Height(mm) | Thickness(mm) |
| 1.Little Clips | 20 | 11 | 8.5 | 0.8-1.5 |
|
2.Common Clips(suitable BTO-22 Razor Wire) |
22 | 11 | 8.5 | 1.0 |
| 3.Middle Clips | 25 | 11 | 8.5 | 0.8-1.5 |
| 4.Bigger Clips | 27 | 11 | 8.5 | 0.8-1.5 |
| 5.Much Bigger Clips | 45 | 11 | 8.5 | 0.8-1.5 |
| 6.Biggest Clips | 55 | 13 | 8.5 | 0.8-1.5 |
4.Razor Wire Clips Feature
The correct way to use the clips is as follows:
1. Drop the semi-finished product of razor wire on the bracket and wait for the buckle worker to buckle.
Second, buckle workers with special callipers with clips and razor wire in order to be connected, the order can not be reversed, finally formed a common crossed razor wire.
Three, the clips good wire roll cage can double - layer packaging.
