Coiled Double Concertina Razor Wire Barbed Tape With Beautiful Appearance

Double concertina razor wire barbed tape concertina razor fence wire

Double Concertina Razor Coil includes two razor concertina coils with different diameters, and small diameter concertina is included in the large diameter concertina. Three nodes connect the two concertina razor. Double concertina razor wire has more beautiful appearance and better protection than other razor mesh.

Double concertina razor wire is a new product. It is used as security fencing and isolation for gardens, residences, military sites and other sites requiring high security.

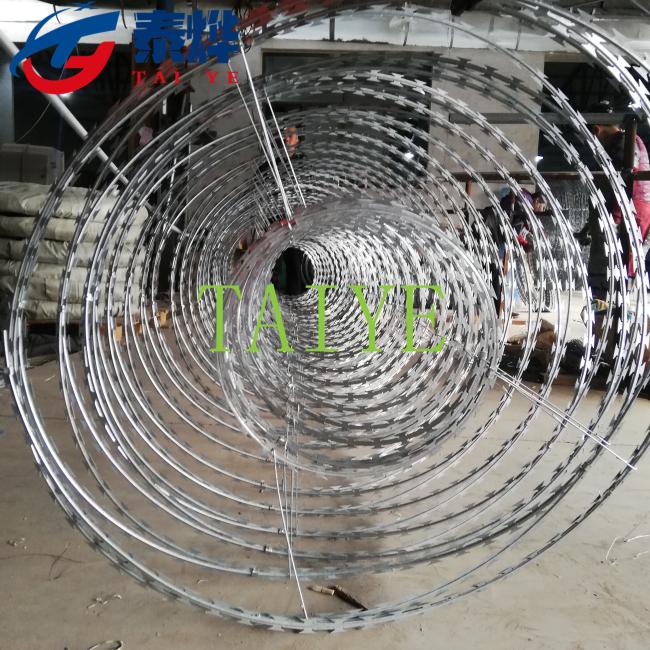

Double concertina razor coil.
Material: stainless steel 304.
Inside coil diameter: 600 mm.
Outside coil diameter: 750 mm.
Blade type: BTO-10,BTO-12, BTO-18,BTO-22, BTO-28,BTO-30,CBT-60,CBT-65

Reference                               Blade Style                                              Thickness    Wire dia     Barb      Barb     Barb

                                                                                                                                                    Length   Width   Spacing
BTO-100.5 ± 0.05   2.5 ± 0.1   10 ± 1   13 ± 1   26 ± 1

BTO-120.5 ± 0.05   2.5 ± 0.1   12 ± 1   15 ± 1   26 ± 1

BTO-180.5 ± 0.05   2.5 ± 0.1   18 ± 1   15 ± 1   33 ± 1

BTO-220.5 ± 0.05   2.5 ± 0.1   22 ± 1   15 ± 1   34 ± 1

BTO-28 0.5 ± 0.05   2.5± 0.1   28± 1    15 ± 1   45 ± 1

BTO-300.5 ± 0.05     2.5 ± 0.1  30 ± 1   18 ± 1   45 ± 1

CBT-600.6 ± 0.05      2.5 ± 0.1  60 ± 2   32 ± 1  100 ± 2

CBT-650.6 ± 0.05      2.5 ± 0.1  65 ± 2   21 ± 1  100 ± 2
