Anti Rust Powder Coated Concertina Razor Barbed Wire For Welded Razor Fence
Price:
To be negotiated
MOQ:
200 Rolls
Delivery Time:
Within 15 days or as your need
Brand:
TAIYE
Product Description
Anti Rust Powder Coated Razor Barbed Wire For Welded Razor Fence
- Powder Coated Razor Barbed Wire is also named PVC Coated Razor Barbed wire.It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets,then powder caoted to anti rust.
- Powder Coated Razor Barbed Wire with different types,BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65

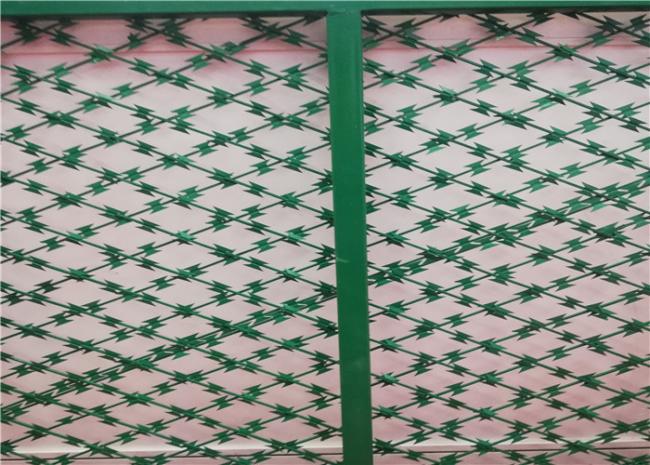

- Powder Coated Razor Barbed Wire can be made for welded razor fence,generally used in Prison Security
- Powder Coated Razor Barbed Wire specification
|
Blade specification |
Blade thickness |
Core Wire diameter |
Blade length |
Blade width |
Blade space |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| EX. dia | loops | Standard covering length |
Production model |
remarks |
| 450mm | 33 | 8m | CBT-65 | Single coil |
| 500mm | 41 | 10m | CBT-65 | Single coil |
| 700mm | 41 | 10m | CBT-65 | Single coil |
| 960mm | 53 | 13m | CBT-65 | Single coil |
| 500mm | 102 | 16m | BTO-12,18,22 | Cross type |
| 600mm | 86 | 14m | BTO-12,18,22 | Cross type |
| 700mm | 72 | 12m | BTO-12,18,22 | Cross type |
| 800mm | 64 | 10m | BTO-12,18,22 | Cross type |
| 960mm | 52 | 9m | BTO-12,18,22 | Cross type |
| Material | Hot-dipped galvanized ,Stainless steel 304, stainless steel 430 |
| Blade type | BTO-10, BTO-12, BTO-22,BTO-28,BTO-30,CBT-60,CBT-65 |
| Roll diameter | 450mm, 500mm, 600mm, 700mm, 730mm, 750mm, 800mm. 950mm , 1000mm and so on |
| Packing | Plastic weaving bags , pallets , carton box |
| Payment terms | 30% advance , the balance 70% after receipt of copy of BL. |
| Remarks | Especial Size is customized as per client's requirement |
Application: Widely used in military, field, prison, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
