Coil CBT 65 Razor Wire Galvanized 5 Clips Connected Concertina Wire Wall
Razor Wire Coil Cbt65 Galvanized 5 Clips Connected Concertina Razor Wire

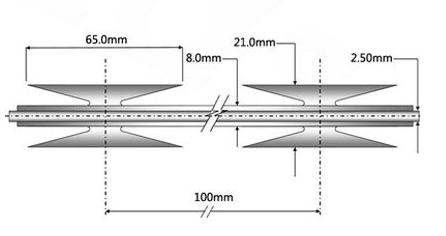

Razor Wire Coil Cbt65 Galvanized 5 Clips Connected Concertina Razor Wire Type picture below
-
Thickness: 0.50 mm +/- 0.05 mm.
-
Wire diameter: 2.50 mm +/- 0.05 mm.
-
Bars length: 65 mm +/- 1 mm.
-
Bars spacing: 100 mm +/- 2 mm.
-
450 mm diameter and 35 rings.
-
Straight length: 46.5 m per roll after pull open.
-
Standard covered length: 10 m.
-
Inner packing: in plastic film.
-
Outer packing: in weaving brag strip.
-
Other name:Single Coil Razor Wire, Single Concertina Wire
-
Material: Hot Dipped Galvanized
-
Blade Type: CBT-65
-
Blade Thickness: 0.6mm±0.05mm
-
Wire Dia: 2.5mm±0.05mm
-
Length: 65mm
-
Width: 21mm
-
Spacing: 100mm±2mm
-
Packing:Waterproof paper+Woven bags,then 5 rolls in Carton
Razor Wire Coil Cbt65 Galvanized 5 Clips Connected Concertina Razor Wire Specification
|
Blade specification |
Blade thickness |
Cor. Wire diameter |
Blade length |
Blade width |
Blade space |
|
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
|
EX. dia |
loops |
Standard covering length |
Production model |
remarks |
|
450mm |
33 |
8m |
CBT-65 |
Single coil |
|
500mm |
41 |
10m |
CBT-65 |
Single coil |
|
700mm |
41 |
10m |
CBT-65 |
Single coil |
|
960mm |
53 |
13m |
CBT-65 |
Single coil |
