Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type For Popular
Price:
Discussed
MOQ:
1ton
Delivery Time:
within 10days after receiving ur deposit
Brand:
Taiye
Product Description
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type
Hot Dipped Galvanized is a kind of Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type's material
1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / Electro Galvanized Wire Hot Dipped Galvanized Sheet
Introduce the Barbed Blade Type of Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type
1. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
2. Razor Barbed sheet thickness: 0.45±0.05mm
1. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
2. Razor Barbed sheet thickness: 0.45±0.05mm
| BTO11 Razor Blade Specification | |
| Razor Thickness | 0.45±0.05mm |
| Barb Length | 11±2mm |
| Barb Width | 15mm |
| Barb Space | 26mm |
| Core Wire Dia. | 2.0-3.0mm |
| Package | Inner waterproof paper with woven bag outside |
Other Coil diameter for u choose: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
| Razor Wire Roll Diameter With Clips Choose | |||||||
| 450mm | 500mm | 600mm | 700mm | 750mm | 800mm | 900mm | 1000mm |
| 3 clips | 3 clips | 3 clips |
3 clips 5 clips |
3 clips 5 clips |
3 clips 5 clips |
3 clips 5 clips |
3 clips 5 clips |
| Usually clients choose roll diameter 500mm used on the top of fence or wall | |||||||
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Length so we know except the coil diameter affect the length, also need to confirm the Razor Barbed Wire Blade Type and Per Roll Weight. Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:
1. 500mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 10-12m
2. 500mmx10kg/roll
Cover length is 15cm between each loop, then 10kg can get 6-7m
Cover length is 15cm between each loop, then 10kg can get 6-7m
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Per Meter Direction for use
Concertina Razor Wire usually attached on "Y" or "V" support and should be mounted razor wire with wire diameter Ф=4mm/3mm/2.8mm in circles with razor wire coil diameters Ф=500mm, with distance between circles 150mm-400mm.
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Paking and shipping
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27ton

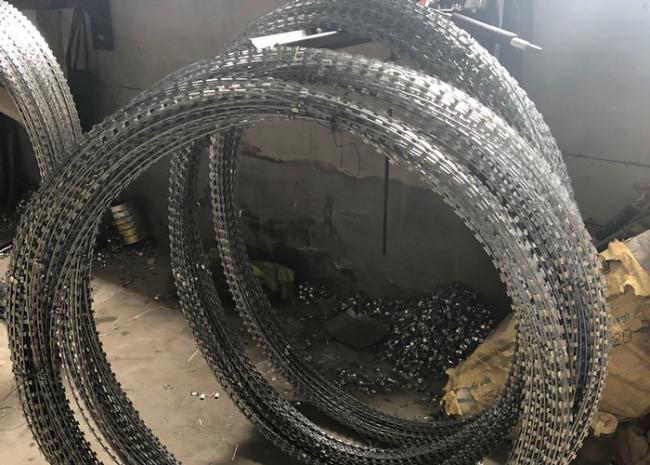

The Following pic is after cliped 950mm coil diameter Hot Dipped Galvanized BTO11 Razor Wire Blade Type which wating to packed on the workshop. And this type much popular in In Vietnam and Korea Market
