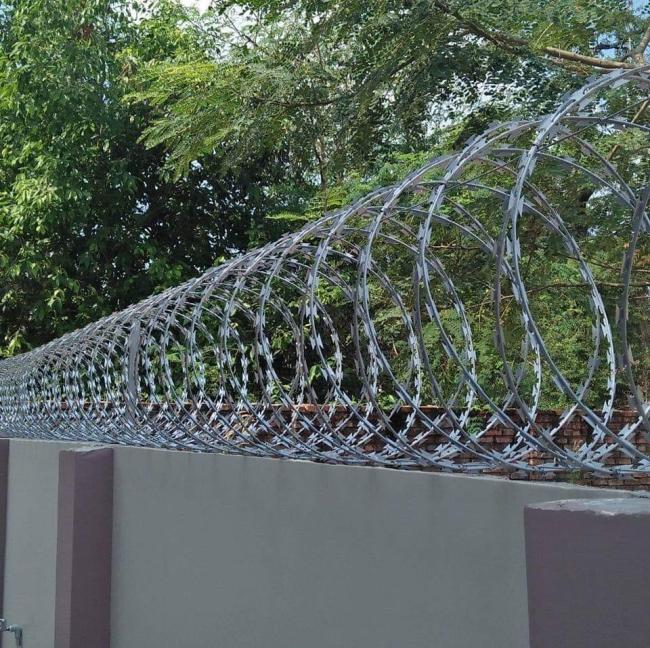

Concertina Razor Tape Wire BTO 22 Razor Wire Use On Top Of Wall
Concertina Razor Tape Wire Bto-22 Razor Wire Used On Top Of Wall
Razor wire in blade type CBT-65 and BTO-22, made of stainless steel or galvanized steel is hot ordered by customers
-
Razor wire single coil, CBT-65, 200 mm coil diameter, 33 loops, 8 m per coil.
-
Razor wire single coil, CBT-65, 200 mm coil diameter, 33 loops, 8 m per coil.
-
Galvanized razor barbed wire, BTO-22 or CBT-65, coil diameter 800 mm.
-
Razor wire, blade type: BTO-10, BTO-15, BTO-22, cross type, coil diameter: 700 mm.
-
Stainless steel 304 razor wire, BTO-30.
-
Razor wire BTO-22, outer roll size 18 and 24 inches.
-
Razor wire BTO 22, outer roll size 18 and 24 inches.
-
Stainless steel razor wire, 3 clips per coil, in 450 mm coils with blade style of BTO-22.
-
Stainless steel razor wire, BTO-30, cross type, 500 loops, 3 clips, length 10 m.
-
Razor edge wire 27 inch diameter single coil BTO-65.
-
Razor wire, coils diameter 900 mm, hot dipped galvanized, BTO-22 , razor tapes, zinc coating min. 40 g/m2, 56 loops per coil, standard cover length 15 meters, about 14.40 kg/coils.
-
Hot dipped galvanized razor wire, BTO-28, 56 loops, 5 clips, coil diameter 700 mm, length 12 m.
-
BTO-22 cross type razor wire, coil diameter 600 mm, thickness 2.5 mm, weight per coil 12 kg.
-
BTO-22 cross type razor wire, coil diameter 900 mm, thickness 2.5 mm, weight per coil 12 kg.
-
BTO-22 cross type razor wire, coil diameter 600 mm, thickness 2 mm, weight per coil 12 kg.
-
BTO-22 cross type razor wire, coil diameter 900 mm, thickness 2 mm, weight per coil 12 kg.
|
Blade specification |
Blade thickness |
Cor. Wire diameter |
Blade length |
Blade width |
Blade space |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| EX. dia | loops | Standard covering length |
Production model |
remarks |
| 450mm | 33 | 8m | CBT-65 | Single coil |
| 500mm | 41 | 10m | CBT-65 | Single coil |
| 700mm | 41 | 10m | CBT-65 | Single coil |
| 960mm | 53 | 13m | CBT-65 | Single coil |
| 500mm | 102 | 16m | BTO-12,18,22 | Cross type |
| 600mm | 86 | 14m | BTO-12,18,22 | Cross type |
| 700mm | 72 | 12m | BTO-12,18,22 | Cross type |
| 800mm | 64 | 10m | BTO-12,18,22 | Cross type |
| 960mm | 52 | 9m | BTO-12,18,22 | Cross type |
