Cbt-60 Concertina Razor Barbed Tape Wire Usded On Chain Link Fence Razor Fence

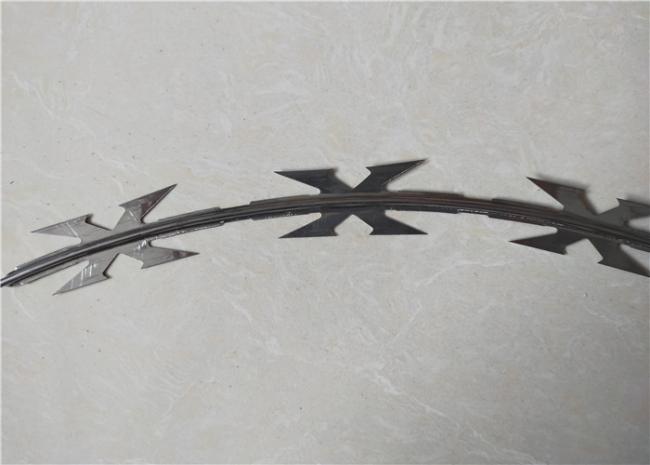

Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.

Material for Razor Barbed Wire Fencing: Galvanized blade, stainless steel blade.

Features: Compact and rational structure, high safety factor, for the protection of prison and key project.

Technical note: Razor barbed wire fencing can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.

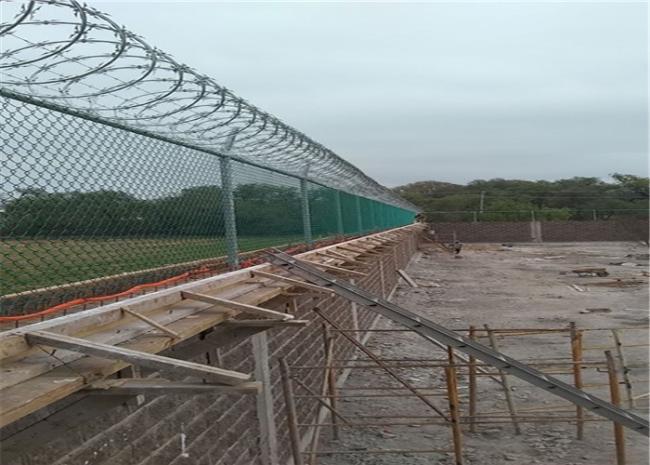

In order to install a razor concertina fencing needs razor barbed wire and other items. There is a fencing example:

• Concertina barbed wire: 750 mm Dia.

• Barbed wire.

• Fabric: 3.76/4.88 mm, 3 m high, mesh 50 mm × 50 mm coated.

• Brace rail pipe; 89.9 mm, 4 m high length coated epoxy green.

• Line post: hollow section 100 × 100 × 4 × 3000 mm with base plate and top cover (post cap) coated.

• Double arm 50 × 50 × 5 mm each 500 mm long with 6 notches (epoxy angle plated).

• Tie wire: 2.5 mm / 3.76 PVC coated.

• Base plate 300 × 300 × 6 mm with epoxy paint finish.

• Slats.
