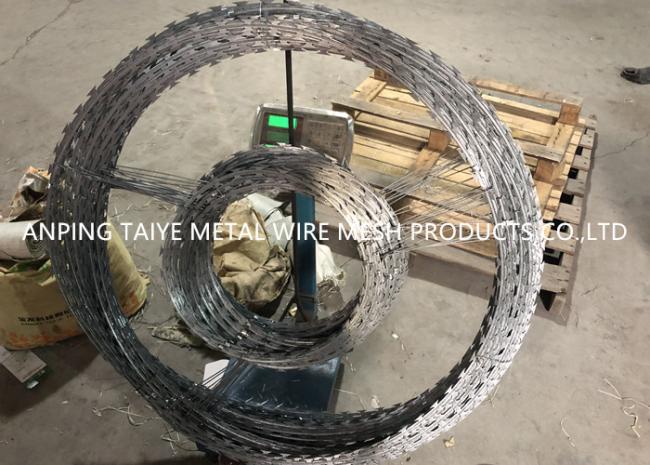

Goverment Use Double Circle BTO30 Razor Wire , SS304 Concertina Coil
Military and Police and Goverment used Concertina Double Circle BTO30 Razor Wire Mobile Security Barrier
Galvanized Concertina Double Circles Razor Wire Mobile Security Barrier is made up of small circle and larger circle razor wire.
One is Used Galvanized Wire Linked together by small circles and large circles. Common Size is 450mm+980mm
Another is used Clips linked together at the bottom of small circles and large circles and common size is 450mm+730mm.
|
Outside Diametar |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
|
450mm |
56 |
8-9M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
10-11M (3CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
700mm |
56 |
10-12M (5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
800mm |
56 |
11-13M (5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
900mm |
56 |
12-14M (5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
960mm |
56 |
13-15M (5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
980mm |
56 |
14-16M (5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
Galvanized Concertina Double Circles Razor Wire Mobile Security Barrier need two circles same loops no. like both 55loops or as ur requirements
Military and Police and Goverment used Concertina Double Circle BTO30 Razor Wire Mobile Security Barrier Material:
|
Galvanized Concertina Double Circles Razor Wire Mobile Security Barrier |
|
| 1 | Electro Galvanized |
| 2 | Hot Dipped Galvanized |
| 3 |
High Zinc Coated Galvanized |
| 4 | 304 Stainless Steel |
| 5 | 316 Stainless Steel |
Military and Police and Goverment used Concertina Double Circle BTO30 Razor Wire Mobile Security Barrier is kind of BTO blade type
|
BTO (Barbed Tape Obstacle) |
11 |
| 22 | |
| 30 |
| BTO30 Razor Blade Specification | |
| Razor Thickness | 0.45±0.05mm |
| Barb Length | 30±2mm |
| Barb Width | 18mm |
| Barb Space | 40mm |
| Core Wire Dia. | 2.0-3.0mm |
| Package | Inner waterproof paper with woven bag outside |
Military and Police and Goverment used Concertina Double Circle BTO30 Razor Wire Mobile Security Barrier Application:
Concertina Double Circle BTO30 Razor Wire Mobile Security Barrier is kind of goverment purchase products and used by military and police. Make easier to secure and control some public emergency events, protect a place or location of the demonstrators or rioters who try to enter /penetrate the defense.
a.Much easier for clients to use
b.BTO30 razor blade is much sharp and stable and beautiful
c.Barriers may either be manually or mechanically recovered for re-use.
d.A set of double circle razor wire can be quickly refilled to drop many kilometers of security fence barrier in a short space of time.
e.Different sizes can be choosed to meet customers exact requirements.
