Heavy Duty Galvanized Razor Wire , Barbed Concertina Barbed Tape
Heavy Duty Galvanized Barbed Concertina Barbed Tape Razor Wire
1. Razor wire is a central strand of high tensile wire, and a steel tape punched into a shape with barbs. The steel tape is cold crimped tightly to the wire. Our razor type barbed wire can be in concertina coils or straight razor lines.

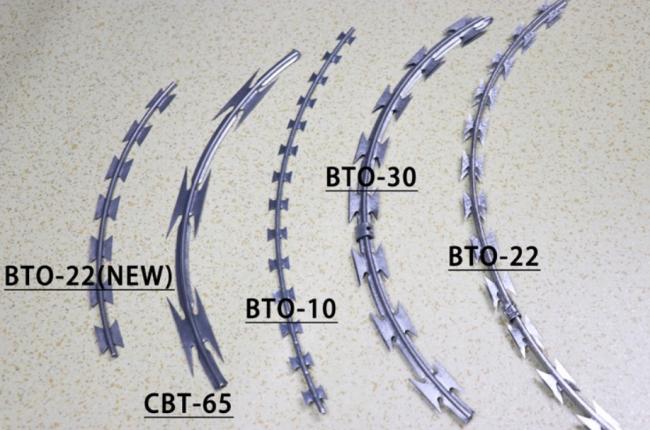

2. Heavy Duty Galvanized Barbed Concertina Barbed Tape Razor Wire Blade Types
- Fish-Hook Blade Razor Wire (CBT-60)
Fish-hook blade is the metal in the middle that has gone through the most gyrations. All hooks have an eye to tie your line to, a sharp tip to pierce the fish's mouth and a barb to hold it in place. Although there are a wide variety of innovations in point design, it's the shank & the bend that have changed the most.
- Long blade (CBT-65)
Razor wire long blade is a vicious product. It is usually used for prison fencing. Extra long blade razors provide maximum frightening effect.
- Tear blade (BTO-30)
Tear blade is an hybrid of medium blade and long blade, more vicious than a medium blade and more economical than long blade.
- Medium blade (BTO-22)
Concertina wire medium blade is an improvement on the short blade variety at a cost-effective price level. It is used widely for commercial and industrial applications. Medium blade concertina wire had a much sharper edge.
- Short blade (BTO-11)
Short blade is the original profile of razor wire barbed tape, developed for military applications. Although mostly replaced by medium blade, it is still preferred by some organizations.
3. Specifications
| Reference Number |
Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±2 |
4. Why Choose Us?
1.Honest: we will strictly adhere to the contract, you will get the exact quality and quantity from us. We never receive any complain from the clients for the quantity and weight.
2.Competitive price with shipment in time.
3. Strictly control on the quality.
4. More than 10years experience in the export.
5.Best service after sale: We will be responsible for any disputes and problems occured after shipment, we assure you that we will be responsible to the end once our service starts.
