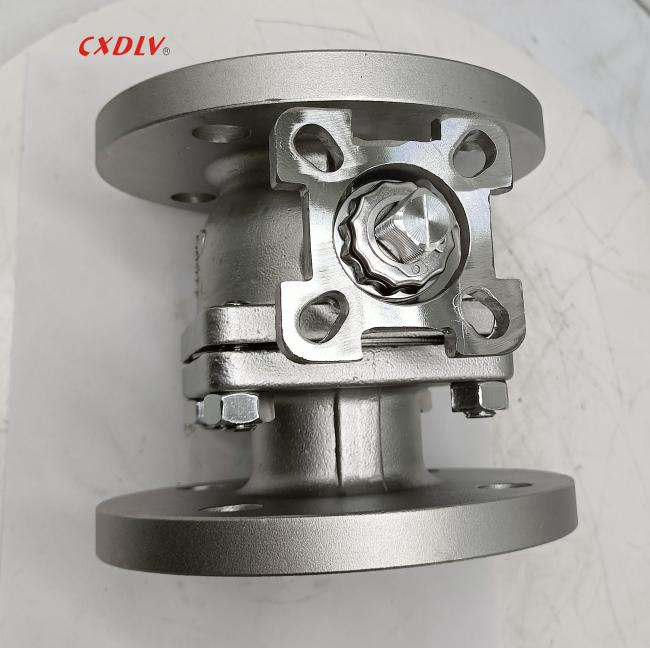

2PC Ball Valve 1.4409 Body PTFE Seat Bare Stem Floating Ball DIN PN16

 Specifications

Investment Casting Ball Valve

Applicable Standards:
- Design and Manufacturing: ASME B16.34,API608

- Connection:ASME B16.5

- Face to Face Dimension:ASME B16.10

- Test and Inspection: API598,API6D

Size Range:
- 1/2" ~ 8"  DN15 ~ DN200

Pressure Rating:
- ANSI150LB,ANSI300LB
Temperature Range:
- 20 °C ~ 185 °C

 Application

* Wide range of applications, from small to a few millimeters in diameter, large meters, from high vacuum to high pressure can be applied.
* Ball valves have been widely used in petroleum, chemical, power generation, paper, atomic energy,aviation, rocket and other departments, as well as people's daily lives.

 Advantage of Ball Valve

1. Square spindle for better strength and more surface contact for hand lever

2. Wetted areas fully machined and polished

3. Optional Fire safe and Anti-Static features

4. Mirror finished ball for tight shut off and lower operating torque

5. Sturdier and better operator friendly hand lever

 Model Selection

Floating Type Full Port Flanged 2PC Ball Valve Within Solid Ball
