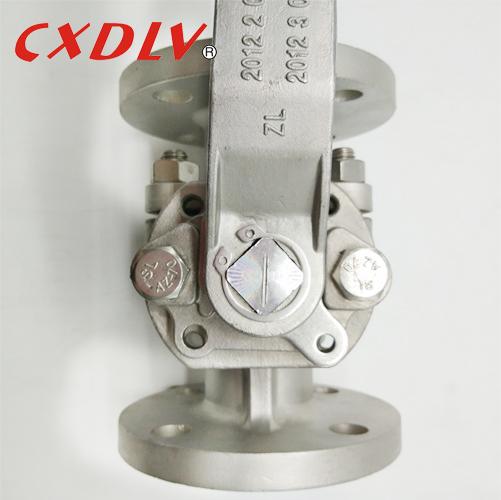

DIN Standard Split Body Low Platform 2pc Ball Valve PTFE PPL Soft Seat

Specifications

DIN Standard Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing:DIN 3357/1, 2EN12516-1

- Flange Connection:DIN2542~DIN2545,En1092

- Fireproof Test: API607 4th 1993

- Test and Inspection:DIN3230/3,En12266

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C

Full bore ball valves have the same bore diameter as the pipe. The advantage is that there are no extra friction losses, and that the system is mechanically easier to clean (pigging). The downside is that the ball and the housing are bigger than a standard ball valve with reduced bore. The cost is therefore slightly higher, and for many applications this is not required.

 Application

Ball Valves are generally a bi-directional valve intended for on-off applications used in a number of different industries. Some of these include water, oil, gas, chemical, pharmaceutical, mining just to name a few.

 Advantage

1. Light weight, reduced vibrations on pipe lines

2. Quick and easy to close, lever position indicates whether the valve is open or closed

3. Easy to mount: with flanged joints

4. Easy to service and repair: can be removed from the piping without taking off the fastening flanges

5. Reliable and trouble-free operation in all positions and only a slight loss of flow

 Model Selection

 2PC Full Port Floating Ball Valve
