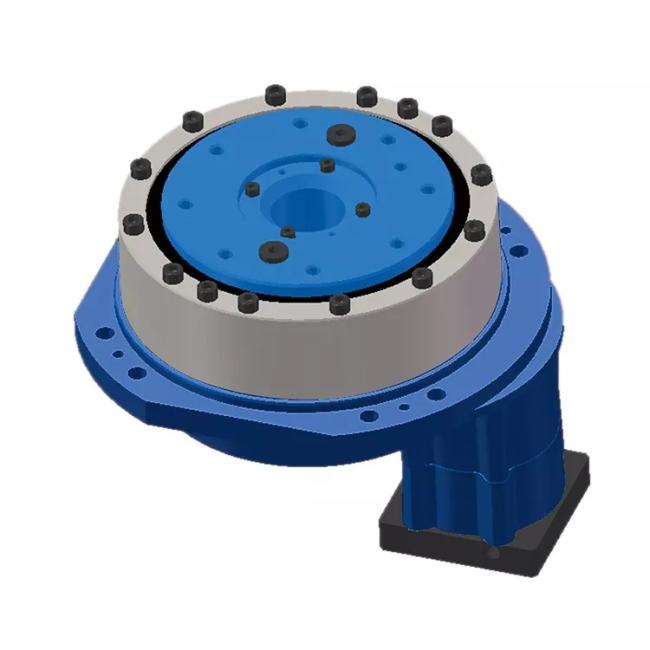

Electric Motor 35rpm RV Gear Reducer 35rpm High Precision
Gearbox RV Series Speed Reducer Bevel Gear Electric Motor Reductor
Adopt international latest technology, under innovative tech, strict QC, our independent R& D team synchronously adopt international craft and cast great quality harmonic gear reducer. With s-shaped teeth, our harmonic reducer with high precision, low noise and long life.
RV gear reducer RV-80E technical Parameters
Operating parameter
| Output Rotational speed r/min |
5 | 15 | 25 | 35 | ||||
| Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | |
| Model | Nm | kW | Nm | kW | Nm | kW | Nm | kW |
| 80E | 1010 | 0.71 | 800 | 1.57 | 696 | 2.41 | 605 | 2.88 |
Note: the rated torque is the output torque when the output speed is at 15r/min.
Performance Parameter
| Model | Speed ratio | Allowable output speed | Maximum backlash | Allowable acceleration/decleration torque | Momentary max allowable torque | Allowable moment | Momentary max allowable movement | Weight | Efficiency | Noise | |
| 80E | Shaft(R) | Housin | r/min | arc.min | Nm | Nm | Nm | Nm | kg | % | dB |
| 81 | 80 | 70 | 1 | 2000 | 4000 | 2050 | 4100 | 13.1 | >80 | <75 | |
| 101 | 100 | ||||||||||
| 121 | 120 | ||||||||||
| 153 | 152 | ||||||||||
RV gear reducer RV-80E installation parameter
| inner hexagon bolt Nominal dimension(mm) |
fastening torque(Nm) | fastening force | bolt requirement |
| M8 × 1.25 | 37.2 ± 1.86 | 23960 | GB/T 70.1 - 2000 intensity:12.9 thread requirement:GB/T 1167-1996 |
| M10 × 1.5 | 73.5 ± 3.43 | 38080 |
About manufactor of RV gear reducer
We are originated from, rooted in and innovative in welding.
It's been over 20 years since our products and technology served in the welding industry.
Without exception, all our products are greatly acknowledged by our customers, which is the very reason we secure the highest market share of our products globally.
Through a decade endeavor, we have developed another core spare part with excellent performance - RV gear reducer, specially used in arc welding robot and automatic industry.
RV gear reducer warranty service
We provide one year quality warranty for our ZKRV series of gear reducers provided that they are used under rated conditions, assembled properly or applied under good lubrications. During this warranty period, refund or free replacement is guaranteed by our company when the performance of the gear reducer is severely downgraded or malfunctioned, however, we will not be responsible for the other costs arisen hereof.
The following situations are exempted from our warranty scope while paid service is available
- The gear reducer is not used based on given conditions.
- Foreign objects enter into the gear reducer.
- The specification of the lubrication and supporting material used does not meet with given conditions.
- Disassemble or reassemble the gear reducer without authorization.
RV gear reducer RV-80E installation drawings
FAQ:
Q: What should I provide when I choose gearbox/speed reducer?
