1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11​

TM5JA813EXX11 is a Multi-Port RJ45 Jack with Shield .90° Angle. Tab-up.Without LEDS and EMI.Iron Pegs,spacing:48mm. Locating Pegs,spacing:44.3mm. Length x Width x Height:15.75 x 48 x 13.1 mm.

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
RJ45 Jack
1 x 3 Port / Single Port / Three Port
Latch Up
Connector Length: 15.75 mm
Connector Width: 48.0 mm
Connector Height: 13.10 mm
Termimal Solder Pin Length: 2.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

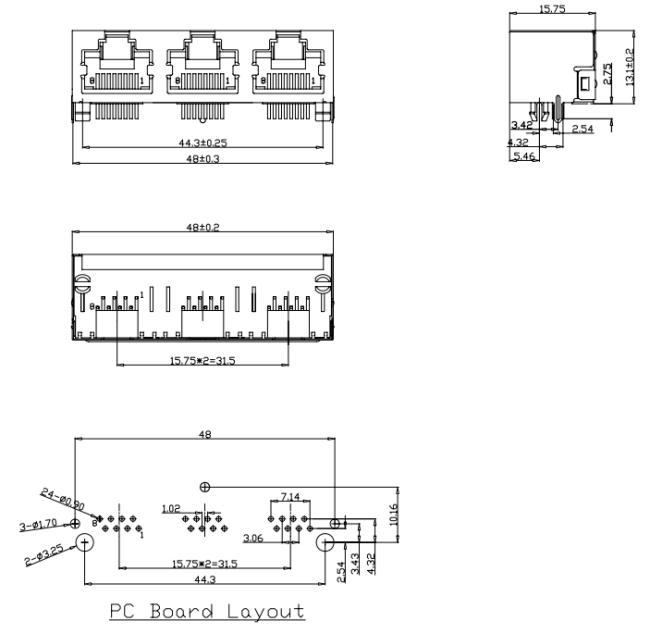

Drawing:
