One Port Rj45 Pcb Connector Flat Needle Unshielded 180 DegreeTM52T811SXX41
Flat needle One Port Unshielded RJ45 Female 180 degree rj45 pcb connector TM52T811SXX41
Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / One Port
Connector Length: 16.00 mm
Connector Width: 15.40 mm
Connector Height: 12.7 mm
Termimal Solder Pin Length: 3.25 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TM52T811SXX41) Attributes:
| Model: | TM52T811SXX41 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Manner of packing : | Tray |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |

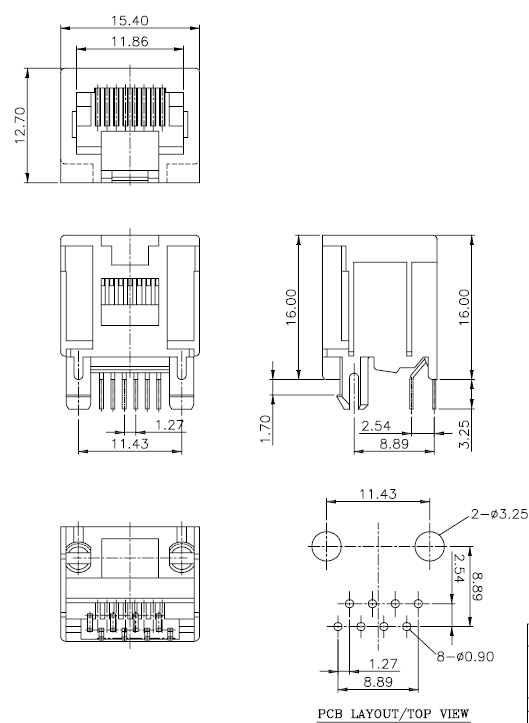

RJ45 Female Connector (TM52T811SXX41) Mechnical Drawing:
