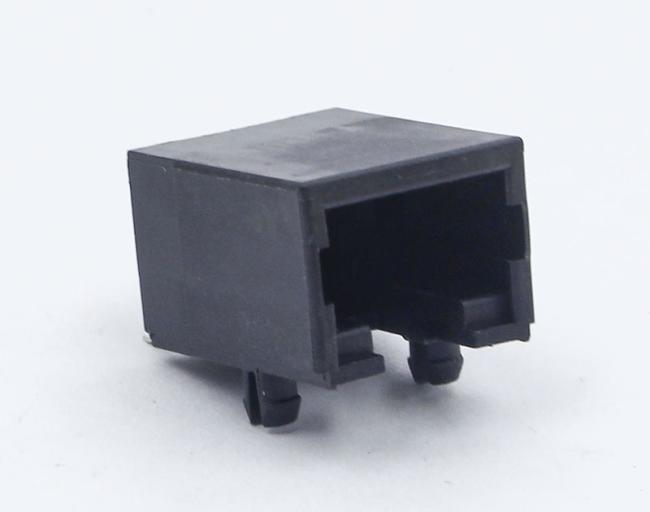

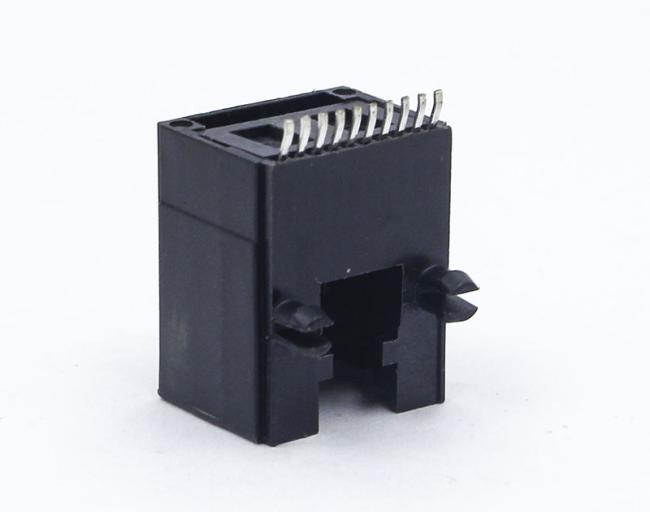

1x1 Single Port SMT Type Low Profile RJ45 PCB Jack
General RJ45 PCB Jack 1x1 Single Port SMT Type low Profile rj45
Materials:
Housing : PA9T/FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: NO.
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
1 x 1 Port / Single Port / SMT Port
Connector Length: 18.10 mm
Connector Width: 15.00 mm
Connector Height: 11.50 mm
Termimal Solder Pin Length: 2.50 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TM56S011SXX41) Attributes:
| Model: | TM56S011SXX41 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 10 |
| Terminals per Port: | 10 |
| LED Option: | NO |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Package: | 180pcs/tray,1440pcs/carton |
| Carton size: | 35*35*40cm |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TM56S011SXX41) Mechnical Drawing:
