8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack

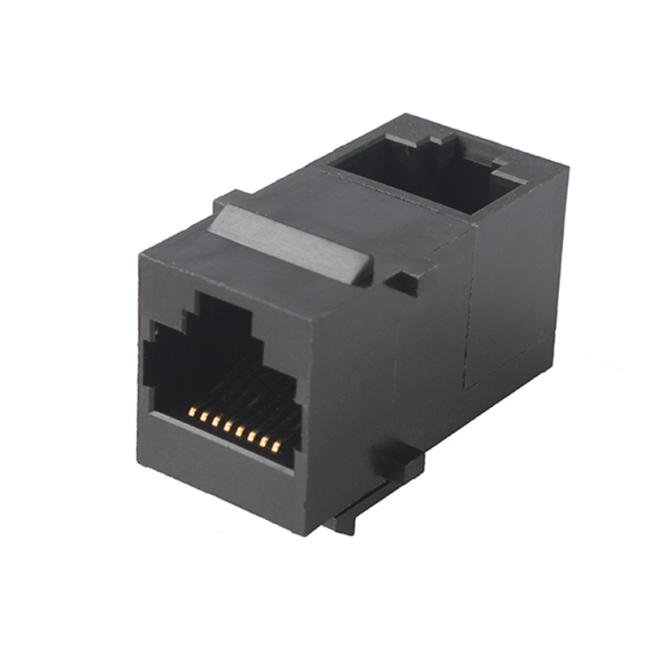

Network Modular RJ45 Adapter Keystone Female to Female 90° Angle
| Model: | TMZT8811SK004201111000 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Keystone Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Shielding Shell: Stainless Steel.
Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

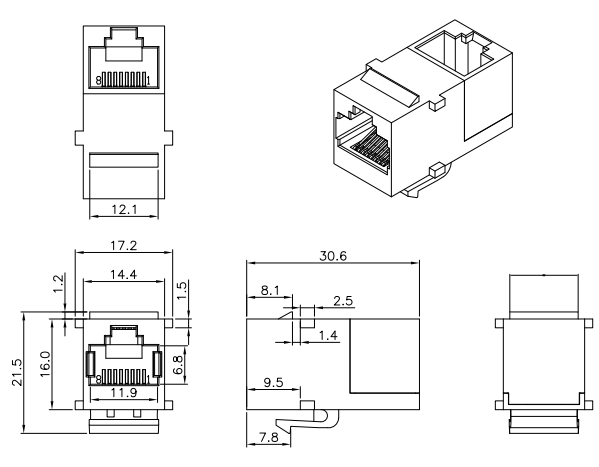

Cat6 RJ45 Coupler Network Modular Drawing:
