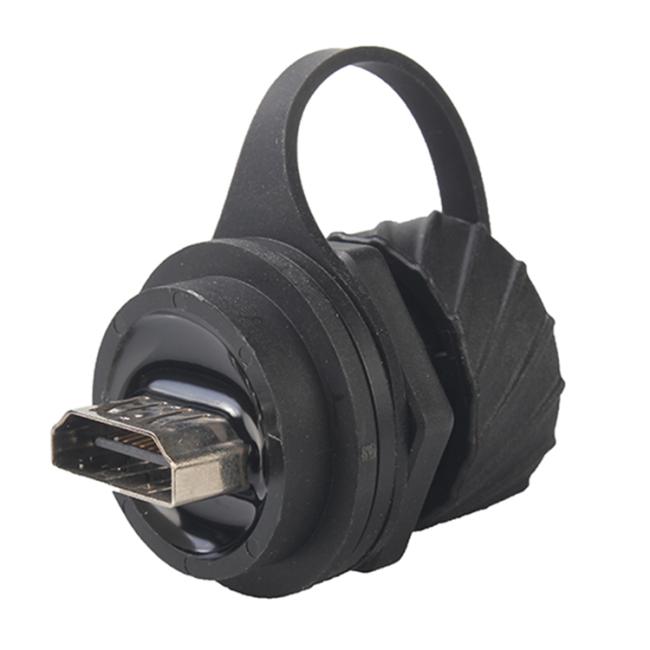

Female To Female Waterproof HDMI Adapter Coupler Industrial Grade
HDMI Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For HDMI Cable Extension
HDMI Adapter Female (TMZJT020059) Attributes:
| Model: | TMZJT020059 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | HDMI Adapter |
| Jack Type: | HDMI |
| Number of Positions : | 20 |
| Terminals per Port: | 20 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 40mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Manner of packing : | 50pcs/tray,500pcs/case |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |

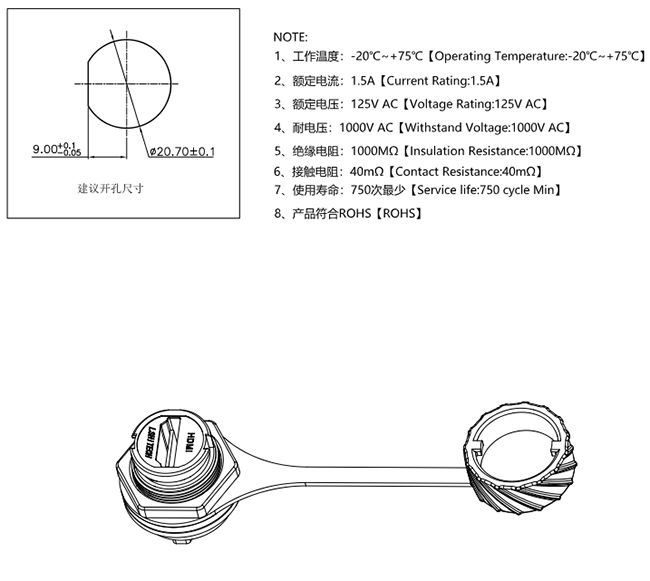

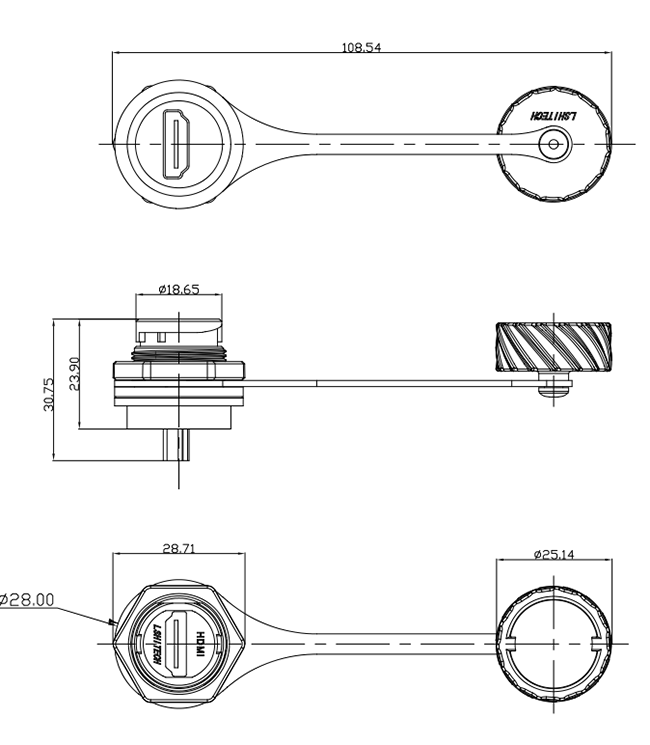

HDMI Adapter Female (TMZJT020059) Mechnical Drawing:
Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:40mQ
Service life:750 cycle Min
Product Structure:
HDMI Adapter
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 30.75 mm
20P20C ( 20 positions 20 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
