Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment

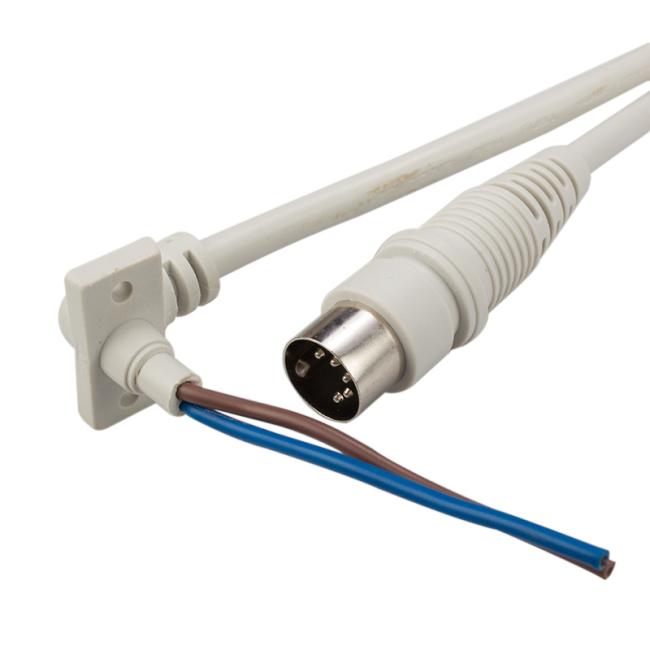

Male 5PIN 180° Din Connector To 2PIN Cable-Tail Power the Medical Equipment White Spring Motor Cable Power Cord
Spring Motor Cable Power Cord (TMCABLE020076) Attributes:
| Model: | TMCABLE020076 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | Motor Cable Power Cord |
| Jack Type: | Din Connector Male |
| Number of Positions : | 5/6 |
| Terminals per Port: | 5/6 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 300 V |
| Current rating: | 2 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 100pcs |
| Manner of packing : | 50pcs/tray,500pcs/case |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
Spring Motor Cable Power Cord (TMCABLE020076) Materials:
Din Connector Molding: PVC White
CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P
Spring Motor Cable Power Cord (TMCABLE020076) Product Structure:
5PIN Din Connector To 2PIN Cable-Tail
1 x 1 Port / Single Port / One Port
Din Connector 5PIN To 2PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:5P5C ( 5 positions 5 contacts )
180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required

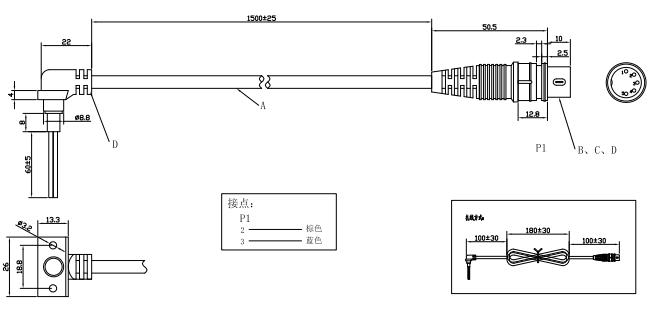

Spring Motor Cable Power Cord (TMCABLE020076) Mechnical Drawing:
