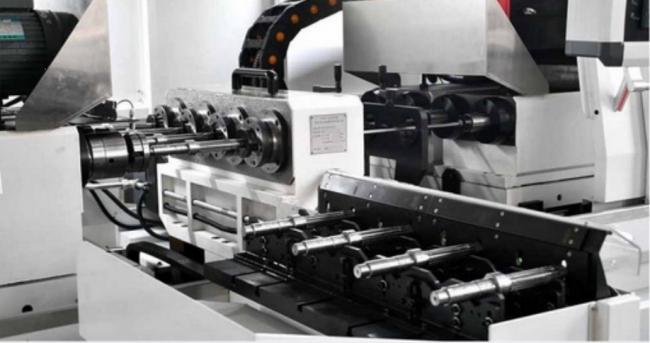

The gear shaft special gun drill machine ZK2120*4B/500-S

Zk21 series machine is mainly used in high volume drilling concentrie holeof small and medium rotary shaft parts.The tool USES a gun drill Multispindle and work position design ensures drill multi workpiecesimultaneously. Comprehensive clamping method design with auxiliarysupport structure makes fast elamping. Automatie loading belt or robotie arnis optional aecording to drilling requirement and workpiece”characteristie..
This series of machine tools can also complete the processing of eceentricholes, oblique holes and allofomm parts of large quantities of rotary shaftparts by means of special tooling for parts, single rotation, multi-axis andmulti-station machining. Such as automobile connecting rod, fuel injector,automobile cylinder head and so on.

In our company,ZK2l series machine tool becauseof its structure (llorizontal horizontal layout, parts convenient location, grab.good compatibility for diflerent types of automation devices) and theirprocessing parts (production batch is big, high eflicieney requirements, partsof similar shape, size medium weight) features, is the highest degree inautomation application models. It can be equipped with various types ofdevices, so as to achieve diflerent degrees of automaticautomationproduetion.

The gear shaft special gun drill machine
Hole diameter range: p5-20mm
Positioning and clamping: Outer chamfer of parts or central hole

Processing method: double rotation/single rotation

The max. drilling depth : 500m
No. of spindle: 4
The max.speed of spindle: 5000 r/min

The typical processing workpiece: automobile gear shaft etc.

Hole characteristics: concentric hole, step holeAutomatic

DEVICE: Manual batch loading and unloading (before), it isequipped with 8 workstations reciprocating lifting type automaticclamping and loading and unloading device.

Application:This series of machine is widely used in processing concentric deep hole and preciseshallow hole of parts like steering shaft, rack shaft, gear shaft of gear box, crankshaft, connecting rod and cam shaft of automotive parts and engine industry, injectorbody, needle valve, plunge bush, etc. of oil nozzle and pump industry; titanium andstainless steel bone serew of medical equipment industry, all kinds of stator of textilemachinery; input and output shaft of motor, small and medium shaft parts.
