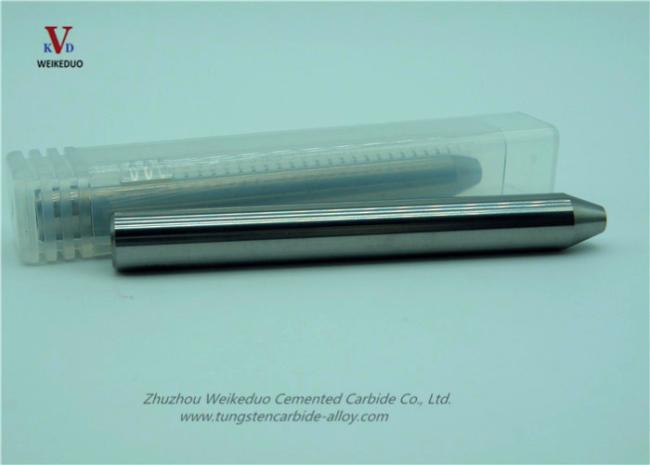

97.5 Hardness Abrasive Water Jet Nozzle , Carbide Water Knife Sand Tube
97.5 Hardness Abrasive Water Jet Nozzle , Carbide Water Knife Sand Tube
Features:
1. 100% raw material, can provide titanium telluride coating to increase wear resistance.
2. Specifications have Φ6.35, Φ7.14, Φ7.6, Φ9.45, etc.
3. Made of special materials, long service life, hardness up to 97.5, excellent wear resistance.
4. Sizes can be produced as required.
5. Factory’s offer
6. Strict products quality inspection
Application:
• Abrasive Waterjet
• Dry Blasting
• Wet Blasting
• Suction Blast
• Mirco Abrasive
• Scrubber
• Descaling
• Slurry Jet
• Spray Drying
•Centrifuge
Specification:
|
NO. |
model |
ΦD(mm) |
Φd1(mm) |
L(mm) |
θ° |
а° |
|
1 |
6.35*1.02*76.2 |
6.35 |
1.02 |
76.2 |
40 |
28 |
|
2 |
6.35*0.76*76.2 |
6.35 |
0.76 |
76.2 |
40 |
28 |
|
3 |
6.35*0.91*76.2 |
6.35 |
0.91 |
76.2 |
40 |
28 |
|
4 |
6.35*1.02*101.6 |
6.35 |
1.02 |
101.6 |
40 |
28 |
|
5 |
6.35*0.76*101.6 |
6.35 |
0.76 |
101.6 |
40 |
28 |
|
6 |
7.14*1.02*76.2 |
7.14 |
1.02 |
76.2 |
40 |
28 |
|
7 |
7.14*0.76*76.2 |
7.14 |
0.76 |
76.2 |
40 |
28 |
|
8 |
7.14*0.91*76.2 |
7.14 |
0.91 |
76.2 |
40 |
28 |
|
9 |
9.45*1.02*76.2 |
9.45 |
1.02 |
76.2 |
40 |
28 |
|
10 |
9.45*0.76*76.2 |
9.45 |
0.76 |
76.2 |
40 |
28 |
|
11 |
9.43*1.02*76.2 |
9.43 |
1.02 |
76.2 |
40 |
28 |
|
12 |
9.43*0.76*76.2 |
9.43 |
0.76 |
76.2 |
40 |
28 |
|
13 |
9.45*1.02*79 |
9.45 |
1.02 |
79.0 |
40 |
28 |
|
14 |
9.45*0.76*79 |
9.45 |
0.76 |
79.0 |
40 |
28 |
|
15 |
9.45*1.02*101.6 |
9.45 |
1.02 |
101.6 |
40 |
28 |
|
16 |
9.45*0.76*101.6 |
9.45 |
0.76 |
101.6 |
40 |
28 |
|
17 |
9.45*1.02*120 |
9.45 |
1.02 |
120.0 |
40 |
28 |
|
18 |
9.45*0.76*120 |
9.45 |
0.76 |
120.0 |
40 |
28 |
|
19 |
7.14*1.02*101.6 |
7.14 |
1.02 |
101.6 |
40 |
28 |
|
20 |
7.14*0.76*101.6 |
7.14 |
0.76 |
101.6 |
40 |
28 |
|
21 |
7.14*0.89*101.6 |
7.14 |
0.89 |
101.6 |
40 |
28 |
|
22 |
7.14*0.91*101.6 |
7.14 |
0.91 |
101.6 |
40 |
28 |
|
23 |
7.14*1.02*120 |
7.14 |
1.02 |
120.0 |
40 |
28 |
|
24 |
7.14*0.76*120 |
7.14 |
0.76 |
120.0 |
40 |
28 |
|
25 |
8.0*1.02*101.6 |
8.00 |
1.02 |
101.6 |
40 |
28 |
|
26 |
8.0*0.76*101.6 Grooved sand pipe |
8.00 |
0.76 |
101.6 |
40 |
28 |
Details:
