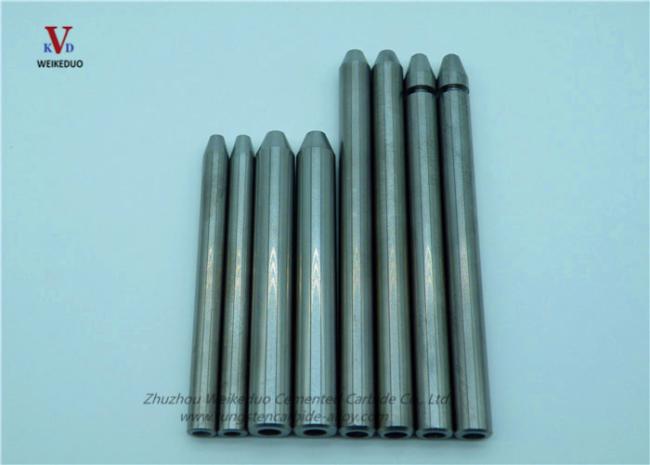

Long Tungsten Carbide Blasting Nozzle , High Pressure Water Jet Cleaning Nozzles
Long Tungsten Carbide Blasting Nozzle , High Pressure Water Jet Cleaning Nozzles
Tungsten Carbide Blasting Nozzle Introduction
1.100% fresh material,we also coating tantalum tin for higher wear resistance.
2. the common sizes are Φ6.35,Φ7.14,Φ7.6,Φ9.45 ect.
3. long life,the hardness up to 96.5HRa,execellent wear resistance.
4. also product according your sizes.
Tungsten Carbide Blasting Nozzle advantage
1. Adopt supermicron grain size, which can result in better wear-reseistance and longer life span.
2. Content of cobalt: below 0.6%.
3. Super oxygen-resistant
4. Using HIP sintering which can increase the performance of carbide greatly.
5. Precision Ground and polished
Tungsten Carbide Blasting Nozzle application:
• Abrasive Waterjet
• Dry Blasting
• Wet Blasting
• Descaling
• Slurry Jet
• Spray Drying
•Centrifuge
Parameters
|
NO. |
model |
ΦD(mm) |
Φd1(mm) |
L(mm) |
θ° |
а° |
|
1 |
6.35*1.02*76.2 |
6.35 |
1.02 |
76.2 |
40 |
28 |
|
2 |
6.35*0.76*76.2 |
6.35 |
0.76 |
76.2 |
40 |
28 |
|
3 |
6.35*0.91*76.2 |
6.35 |
0.91 |
76.2 |
40 |
28 |
|
4 |
6.35*1.02*101.6 |
6.35 |
1.02 |
101.6 |
40 |
28 |
|
5 |
6.35*0.76*101.6 |
6.35 |
0.76 |
101.6 |
40 |
28 |
|
6 |
7.14*1.02*76.2 |
7.14 |
1.02 |
76.2 |
40 |
28 |
|
7 |
7.14*0.76*76.2 |
7.14 |
0.76 |
76.2 |
40 |
28 |
|
8 |
7.14*0.91*76.2 |
7.14 |
0.91 |
76.2 |
40 |
28 |
|
9 |
9.45*1.02*76.2 |
9.45 |
1.02 |
76.2 |
40 |
28 |
|
10 |
9.45*0.76*76.2 |
9.45 |
0.76 |
76.2 |
40 |
28 |
|
11 |
9.43*1.02*76.2 |
9.43 |
1.02 |
76.2 |
40 |
28 |
|
12 |
9.43*0.76*76.2 |
9.43 |
0.76 |
76.2 |
40 |
28 |
|
13 |
9.45*1.02*79 |
9.45 |
1.02 |
79.0 |
40 |
28 |
|
14 |
9.45*0.76*79 |
9.45 |
0.76 |
79.0 |
40 |
28 |
|
15 |
9.45*1.02*101.6 |
9.45 |
1.02 |
101.6 |
40 |
28 |
|
16 |
9.45*0.76*101.6 |
9.45 |
0.76 |
101.6 |
40 |
28 |
|
17 |
9.45*1.02*120 |
9.45 |
1.02 |
120.0 |
40 |
28 |
|
18 |
9.45*0.76*120 |
9.45 |
0.76 |
120.0 |
40 |
28 |
|
19 |
7.14*1.02*101.6 |
7.14 |
1.02 |
101.6 |
40 |
28 |
|
20 |
7.14*0.76*101.6 |
7.14 |
0.76 |
101.6 |
40 |
28 |
|
21 |
7.14*0.89*101.6 |
7.14 |
0.89 |
101.6 |
40 |
28 |
|
22 |
7.14*0.91*101.6 |
7.14 |
0.91 |
101.6 |
40 |
28 |
|
23 |
7.14*1.02*120 |
7.14 |
1.02 |
120.0 |
40 |
28 |
|
24 |
7.14*0.76*120 |
7.14 |
0.76 |
120.0 |
40 |
28 |
|
25 |
8.0*1.02*101.6 |
8.00 |
1.02 |
101.6 |
40 |
28 |
|
26 |
8.0*0.76*101.6 Grooved sand pipe |
8.00 |
0.76 |
101.6 |
40 |
28 |
Details
