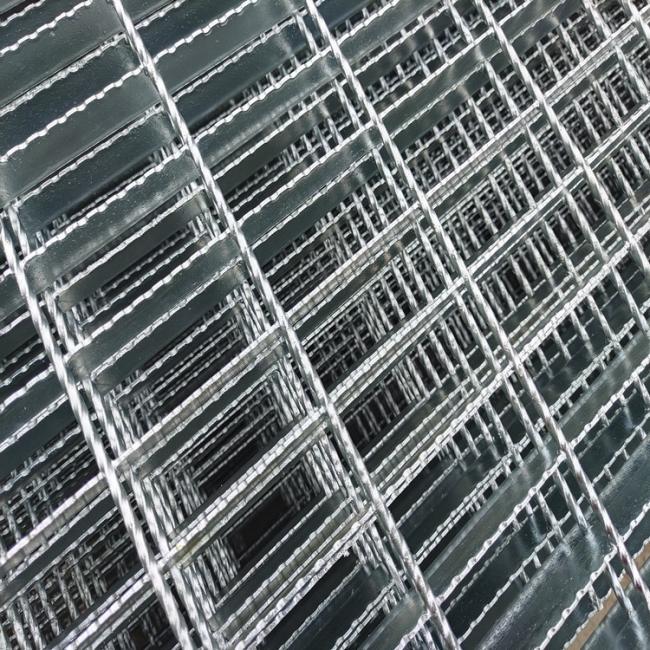

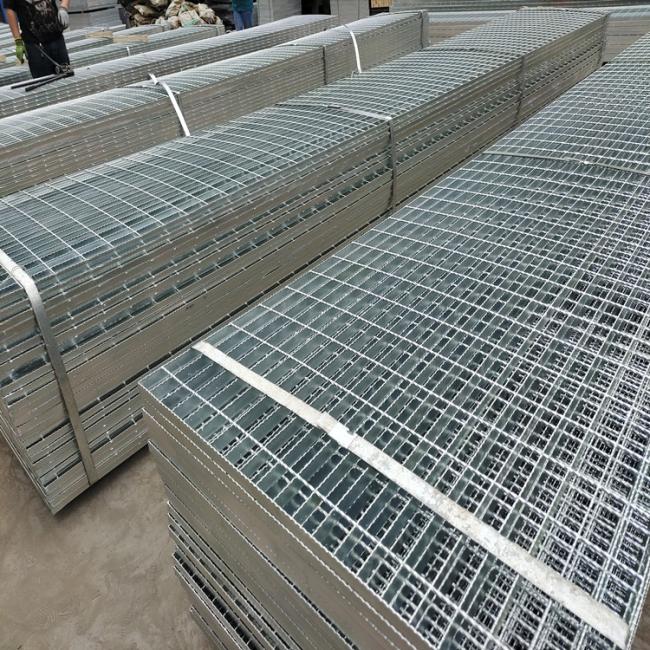

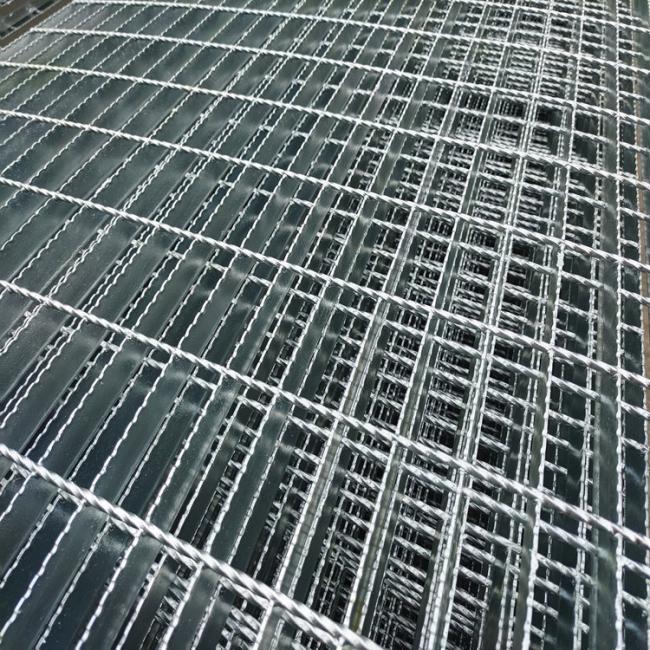

Hot Dip Galvanized Serrated Steel Grating Welded Floor Walkway Anti Slip
Hot-dip galvanized welded floor walkway anti-slip Serrated Steel Grating
Metal Building Materials Hot Dipped 32 x 5mm Galvanized Steel Grating
Material of steel driveway grates grating is usually low carbon steel ,stainless steel. the size is commonly standard or as required.
Packing:Naked or as the customers' request.
certificate is ISO 9001:2000.
Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Material:
Carbon steel, Stainless steel ,and so on .
Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated
Size:
Standard size or OEM(Making as the customers' request).
Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Useage:
Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
Naked or packing as the customers' request
|
Product Name
|
Steel grating
|
|
Material
|
Low carbon steel / Stainless steel
|
|
Grade
|
CN: Q235, Q345, USA: A36, UK: 43A
|
|
Standard
|
CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
|
|
Certification
|
CE, GOST, ISO9001, ISO14001, HSE
|
|
Bearing bar size
|
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
|
|
Bearing bar pitch
|
20,25,30,32.5,34.3,40,50,60,62,65mm
|
|
Bearing bar type
|
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
|
|
Cross bar size
|
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
|
|
Cross bar pitch
|
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
|
|
Panel size
|
3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
|
|
Surface treatment
|
Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
|
Product Features
1. Anti-rust, anti-corrosion.
2. Light weight, easy installation.
3. Good Permeability, linghting.
4. Economical, long service life.
5. High impact resistance.
6. Ventilation, heat dissipation.
7. Non-slip and explosion-proof.
FAQ
Q1: What is the material of the product?
low carbon steel, galvanized steel, stainless steel, aluminum, etc.
Q2: What about the packing?
Usually belt, pallet, wooden case.
Q3: How much abbot your annual production capacity?
Around 2500tons
Q4: Can i get sample?
Sure, we provide samples.
Q5: Do you offer a warranty on your products?
Yes , we have the strict quality inspection before delivery .
Q6: Do you have any certificate?
Yes,we have ISO9001
Q7: Do you have a separate quality departments?
Yes,we have QC department.Will make sure you receive the perfect product.
Q8: Do you have mutually agreed upon specifications with your suppliers?
Yes,we will make contract specify the specifications with the material suppliers
