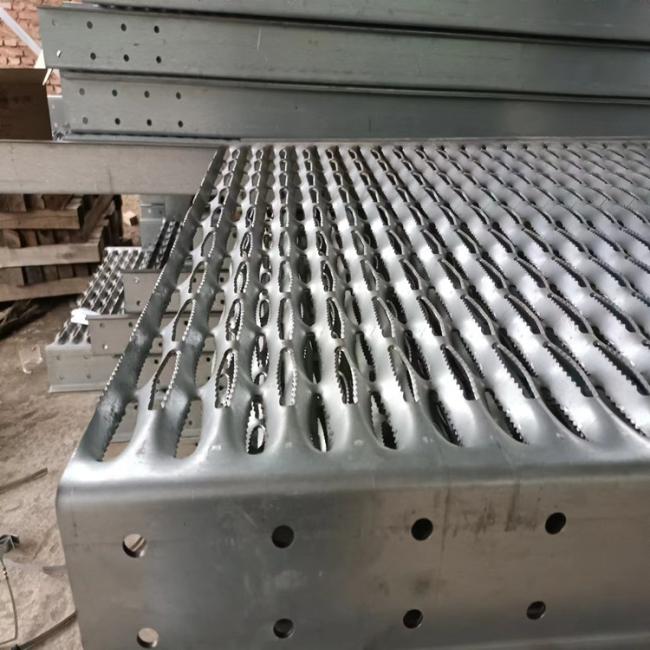

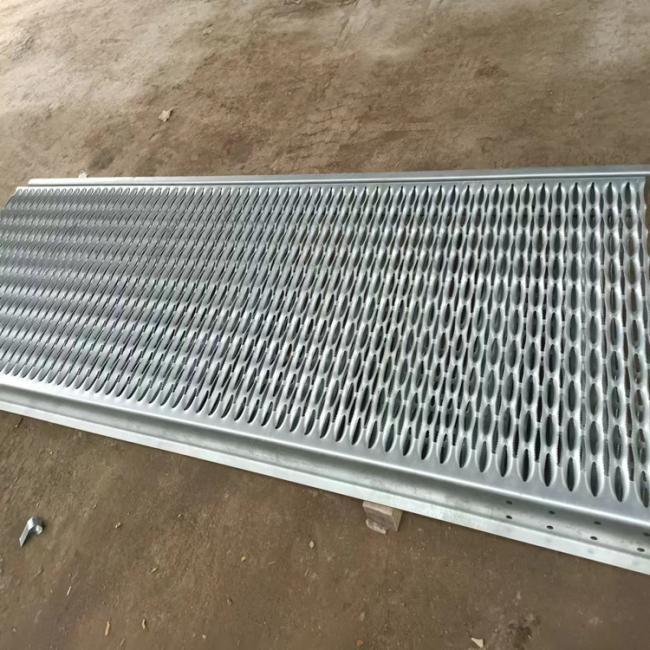

0.5mm Thick Heavy Duty Steel Grating 19-W-4 Hot Dipped Galvanized Walkway
19-W-4 Heavy Duty Steel Grating Factory Direct Hot Dipped Galvanized Walkway
| Product name | *Steel grating |
| Material |
*Mild steel (Carbon steel) *stainless steel 304, SS316 |
| Material standard |
*USA:ASTM A36 *UK:BS4360 *Australia:AS3679 *China:Q235 |
| Bearing bar type |
*Smooth/flat bar *serrated/toothed bar *Smooth I bar *Serrated I bar |
| Bearing bar thickness | *2mm to 10mm, 3mm and 5mm recommended |
| Bearing bar pitch | *12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended |
| Bearing bar specification |
*flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 *I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
| Cross bar | *5*5mm,6*6mm,8*8mm |
| Cross bar pitch | *30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
| Surface treatment |
*Hot dipped galvanized *Untreated(self-color) *Painted |
| HDG standard |
*ASTM A123 *BS729 *AS1650 |
| Grating Standard |
*AS1657-2013 *BS4592-2006 *ANSI/NAAMM(MBG531-88) |
Hebei Zhuote Wire Mesh Products Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries. We do custom manufacture and can supply a high quality OEM service for clients.
