Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover
heavy duty hot dip galvanized stair treads drain cover aisle industrial platform steel grating

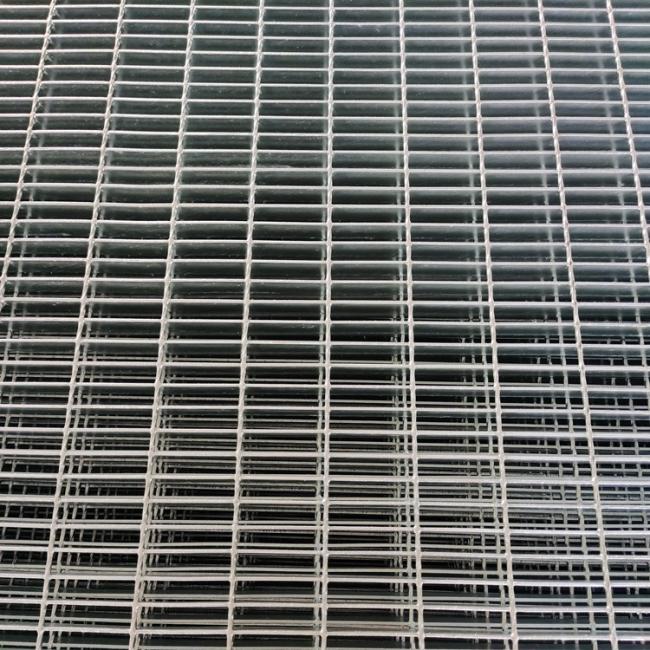

Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes.
1. Description
(1) Structure: Welding with flat steel and cross/round bars with certain distances.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
1.Material :Low carbon steel, stainless steel, aluminum alloy
2.Shape and specification
3.Types of Steel Grating: Plain/smooth type, I type ,Serrated/teeth type.
4.Cross bars shape: square bars, twisted square bars,round bars
Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc
Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc
Bearing Bar Pitch: 30mm, 40mm, 50mm, etc
Cross Bar Diameter: 5mm, 6mm, 8mm, etc.
Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc
| No. | Item | Description |
| 1 | Bearing bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Cross bar | 5*5,6*6,8*8mm(twisted bar or round bar) |
| 4 | Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 5 | Material Grade |
ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400, Mild steel & Low carbon steel,etc. |
| 6 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 7 | Flat bar type | Plain,Serrated(tooth-like),I bar (I section) |
| 8 | Standard |
China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88), UK:BS4592-1987,Australia:AS1657-1985, Germany:DIN24537-1-2006, Japan:JJS. |
Our services
With advanced technology, production lines equipped with imported machines, as well as experienced workers, we supply the products with high quality.
Our slogan is "the products speak". In spite of different size and different value of the order, we will make our biggest efforts to offer best service and perfect products to every customer. Save both cost and time for customers.
We are one of industry and trade.
Q2: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote with be sent.
Q3:Can the products be customized?
Yes.The company has a professional design team, strict management system, can quickly design according to customers' drawings for
free, and provide professional production plans to ensure the rights and interests of every customer.
Q4:What is your payment method?
30% advance payment.
