Leak Proof Heavy Steel Grating Galvanized Grille Panels For Pedestrian Passages
Factory equipment is mounted with leak-proof galvanized grille panels for pedestrian passages

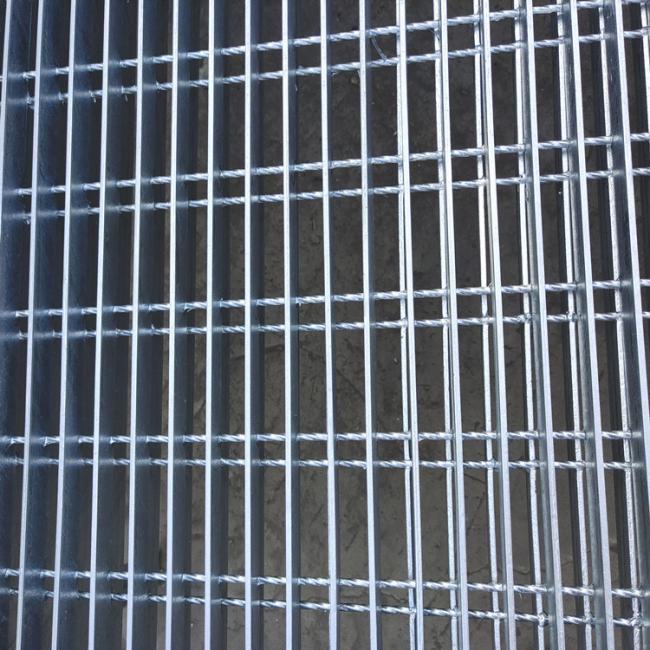

Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes.
Description
(1) Structure: Welding with flat steel and cross/round bars with certain distances.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Material:
Carbon steel, Stainless steel ,and so on .
Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated.
Size:
Standard size or OEM(Making as the customers' request).
Features:
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Useage:
Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
Naked or packing as the customers' request.
Steel grating's advantages:
1. Steel grating is environment friendly
2. Lower cost and maintenance
3. Long using time up to 15 years
4. Galvanized steel grating resistances up to 9 grade
5. Fast construction, time saving and labor saving
6. Good appearance
| Span: | Total span. |
| Width: | Panel width. |
| Bearing Bars: | Load carrying main element. |
| Bearing Bars Spacing: | Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) on center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center. |
| Bearing Bars Depth: | Ranges from 3/4″ to 7″ depending on anticipated loads. |
| Bearing Bars Thickness: | Ranges from 1/8″ to 1/2″ depending on anticipated loads. |
| Cross Bars: | Used to Secure the position of bearing bars. |
| Cross Bar Spacing: | Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center. |
A: Direct factory,competitive factory price, quality assurance,local stock,fast delivery.
2: How about the payment terms?
A:We usually use the T/T,L/C order.
3: How about the delivery time?
A:Usually within 15- 20 days, customized order may need longer time.
4:Can you offer free sample?
A:Yes, It is our pleasure to provide sample,but usually the customer need to pay the freight,
We'll send back the courier charge if you make an order.
5: what is your advantage?
A: We are direct factory and we have been in providing professional products and serving the market for more than 20 years.
