Ventilated Steel Grating, Maintaining Air Circulation
Sales Territory
After the completion of production in our factory, the goods will be packed and sent to the port for transportation, our company's products are exported to the world, the United States, Singapore, Australia, Germany, France, Britain, Spain, Central Africa, Egypt, South Africa and other countries have our customers
Technical Parameters
| Transport Package | Packaged By Steel Belt With Pallet |
| Size | As Per Drawing,commoned 32*5 |
| Features | Anti-slip, Drainage, Ventilation |
| Thickness | 2mm-5mm,5mm |
| Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
| Load Bearing Capacity | Heavy Duty |
| OEM | Available |
| Grating Standard | YB/T4001-2007 |
Product material diversity
Raw materials of steel grid plate are: flat steel, twist steel, pattern plate.

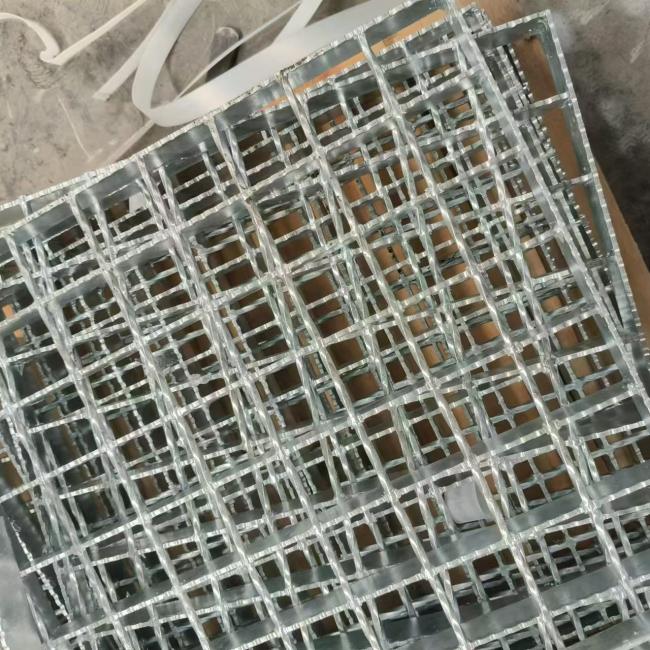

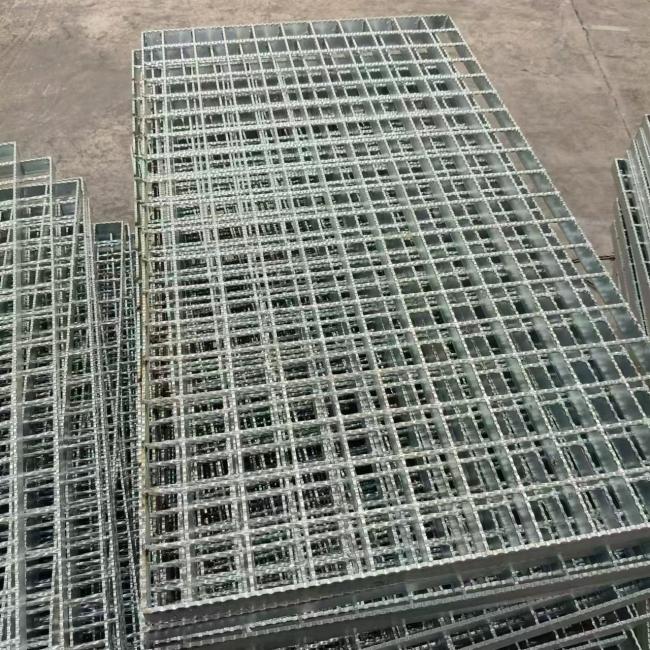

The steel grid plate is an open steel member which is composed of bearing flat steel and cross bar according to certain spacing and fixed by welding or pressure lock. The transverse bar is generally made of twisted square steel, round steel or flat steel, and the material is divided into carbon steel and stainless steel.
Production method of steel grid plate:
The pressure welded steel grid plate is made of load flat steel and cross bar arranged according to certain spacing longitude and latitude, using 200 tons of hydraulic resistance welding automatic equipment to weld into the original plate, through cutting, opening, packaging and other processes.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM two.
Bar spacing: The center spacing of two adjacent bars is usually 50MM and 100MM.
