Construction Of Farms Galvanized Steel Grating Effective Anti Slip Better Management Of Farm
Part of the product specification
surface treatment
Hot galvanizing, cold galvanizing, electroplating, spray painting
application area
Industrial field, civil construction, municipal engineering
product superiority
Stable structure and low maintenance cost
| item | Galvanized Stainless Fence Drainage Channel Serrated Steel Bar Steel Grating |
| Warranty | More than 5 years |
| Surface | galvanized |
| Style | Plain sheet,Serrated sheet,I type sheet |
| Usage | Industrial platform, Corridor laying, Ditch cover plate, Fence, etc |
| Bearing bar pitch | Custom:12.5-90mm Routine use:20mm 30mm 40mm |
| Cross bar pitch | Custom:22-100mm Routine use:50mm 100mm |
| Thickness | Custom:3-10mm Routine use:3mm 4mm 5mm |
| Weld way | Automatic pressure resistance welding |
product material Raw materials of steel grid plate are: flat steel, twist steel, pattern plate.

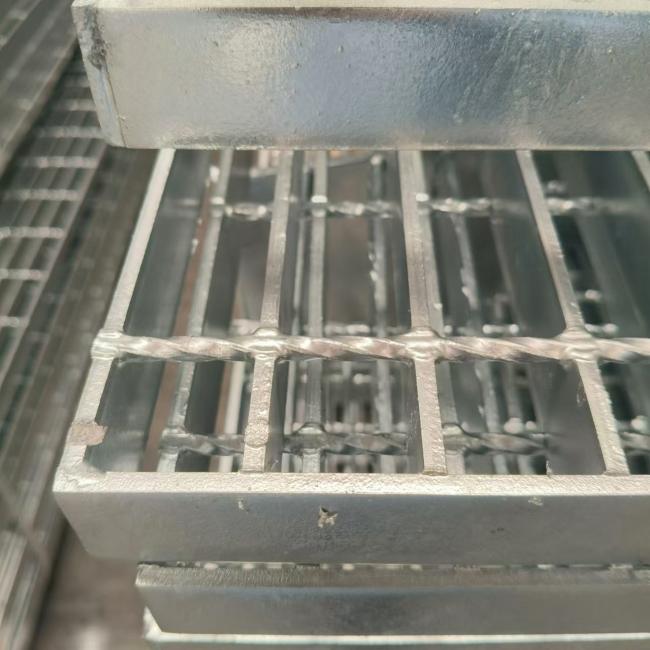

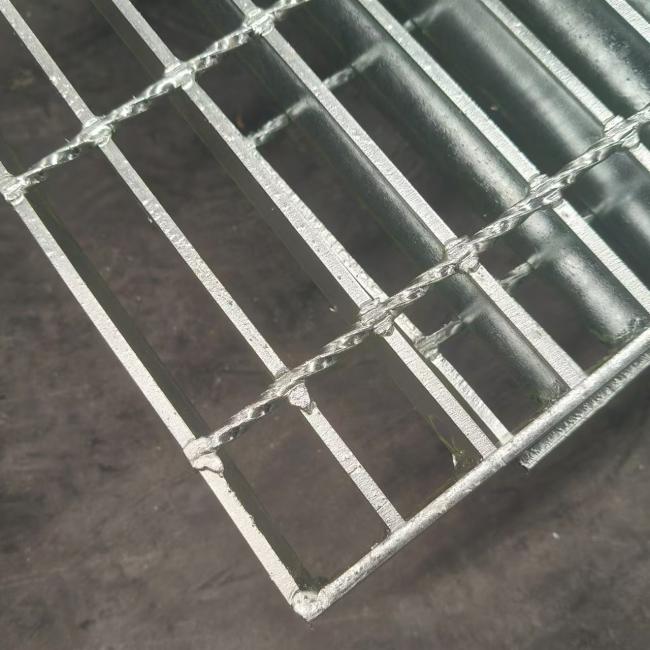

The steel grid plate is an open steel member which is composed of bearing flat steel and cross bar according to certain spacing and fixed by welding or pressure lock. The transverse bar is generally made of twisted square steel, round steel or flat steel, and the material is divided into carbon steel and stainless steel.
Production method of steel grid plate:
The pressure welded steel grid plate is made of load flat steel and cross bar arranged according to certain spacing longitude and latitude, using 200 tons of hydraulic resistance welding automatic equipment to weld into the original plate, through cutting, opening, packaging and other processes.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM two.
Bar spacing: The center spacing of two adjacent bars is usually 50MM and 100MM.
| Common Specification of Steel Grating | |
|
Bearing Bar (Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 11/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
| Payment Term | T/T, L/C, Western Union, Credit Card, Trade Assurance |
| We can supply according to your specification (OEM & ODM) | |
