Refinery Industrial Steel Grating , Mild Stainless Steel Grate Sheet

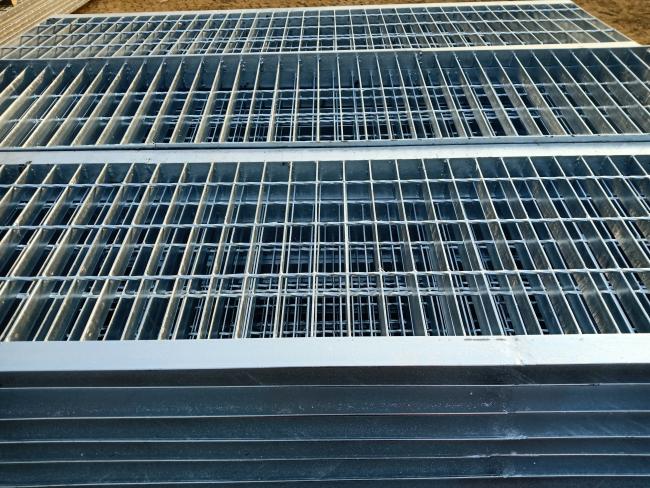

Introduction of Mild Steel Grating

Anping Tiantai Steel grating Metal Mesh Co.,Ltd is located at "Chinese hometown of wire mesh"- Anping, is a professioonal dedicated to the production of Steel Galvanized Metal Grate Steps For Stairs manfacturer. Corporate area of 12000 square meters.Tiantai Steel Grating specializes in the production of Steel Galvanized Metal Grate Steps For Stairs for twelve years, and has accumulated a lot of experience in production .
Steel Galvanized Metal Grate Steps For Stairs is the most widely used for their strength and ease of installation and are universally used in most industrial and commercial applications. Riveted steel stair treads have a greater load carrying capacity for the same span and depth of bearing bar and greater walking comfort. Both can be ordered with a serrated surface for additional safety.
Food processing plants, maintenance areas, worker platforms on marine and oil rigs are just a few of the areas that commonly employ the use of stair treads to increase safety.

1) Bearing Bar (Load Bar) Specifications (mm):

The specification of I-section type is 25 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):

12.5, 15, 25, 30, 32.5, 34, 40, 45, 50, 60, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on.>

3) Cross Bar Pitch (center to center):

38, 40, 50, 60, 80, 90, 100, 102, 135mm and so on

4) Material:

Mild Steel (Low Carbon Steel) or Stainless Steel

5) Surface Treatment:

Untreated, Painting or Hot DIP Galvanizing

6) Steel grating standards:

A) China: YB/T4001-2007
B) USA: ANSI/NAAMM (MBG531-88)
