Hot Dip Stainless Steel Driveway Grates Flat / Serrated Bar Alkali Corrosion
Direct factory hot dip gavalnized steel grating,steel driveway grates ,grating steel
Introducation of hot dip galvanized steel grating
1> Material:carbon steel or stainless steel
2> Cross bar pitches: maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.
3> Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain insure distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.
4> Surface process of steel grating types:hot-dipped galvanized,electro-galvanized ,spray and brushing. 95% people choose hot-galvanized because its anti-acid and alkali corrosion capacity range is from PH6 to PH12.5,a stable protective film will be formed on the zinc surface.A good anti-corrosive property to be resulted.
5> Attractive appearance: Simple outline,silver colour and modern style.
6> Optimum water draining:Water leakage area reaches 83.3%,which is double larger than that of cast iron.
7> Hot-dip galvanizing:Good antirust performance,maintenance free and free replacement.
8> Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety and convenient opening.
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x4, 32x5, 40x5, 50x5, 65x5, 75x6, etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, 50x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 15, 20, 25, 30, 30.16, 30.3, 32, 32.5, 33, 34.3, 35, 36, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2, 16-w-4 etc | ||
| 3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted etc |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, |
| UK: BS4592-1987, Australia: AS1657-1985, |

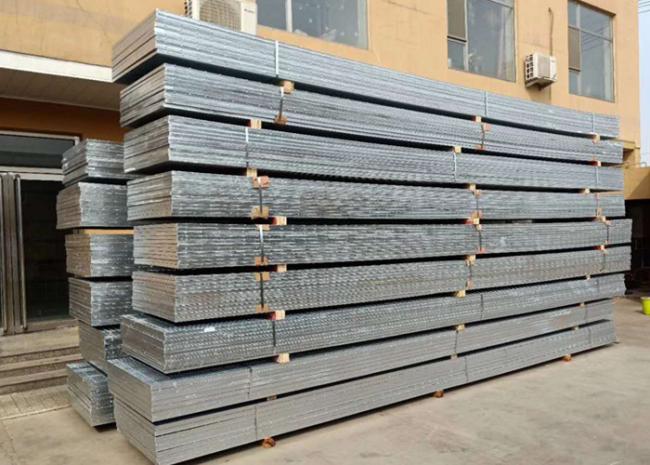

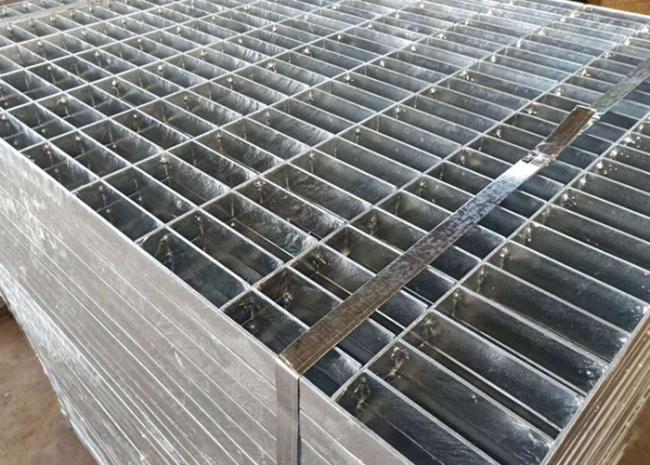

Steel grating images:
