19-W-2 Welding Serrated Steel Grating 1m * 6m Panels For Retail ISO
19-W-2 Welding Serrated Steel Grating 1m * 6m Panels For Retail ISO
Description:
Steel gratings consist of a series of bearing bars cross jointed by welding at various intervals with cross bars (twisted square bars, square bars, round bars, flat bars, etc), to form a kind of steel products with square lattices among them.
Hot DIP galvanized steel grating has three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drains and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.
| common specification table | |||||||
| Bearing BarSpacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing BarSpacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Quality Standards:
|
Grating Standard |
Material Standard |
HDG Standard |
Handrail Standard |
| YB/T4001-2007 | GB704-88 | GB/T13912-92 | 4053.3-93 |
| ANSI/NAAMM | ASTM (A36) | ASTM (A123) | |
| BS4592-1995 | BS4360 (43A) | BS729 | BS6399/BS6180 |
| AS1657-1992 | AS3679 | AS1650 | 1650-1985 |

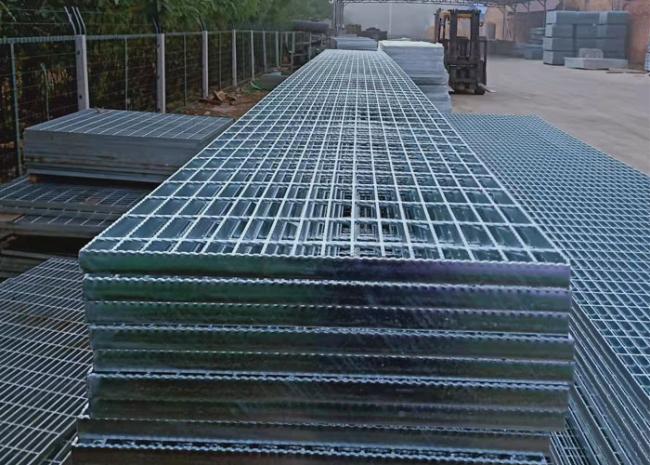

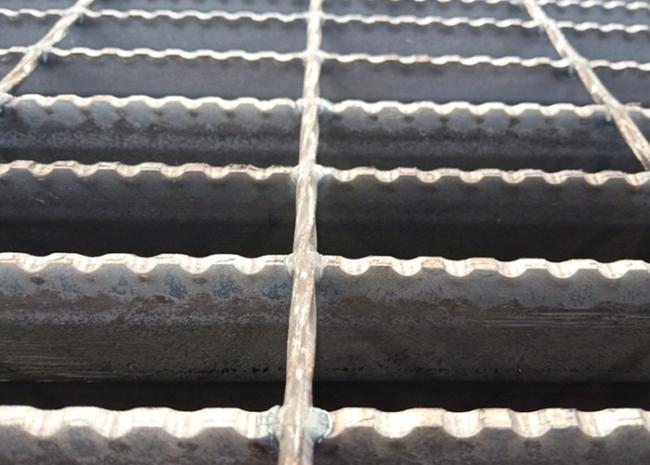

Product Picture:
