Welding galvanized steel grating For Outdoor Floor And Trench Painted steel walkway grating
Welding HDG Steel Grating For Outdoor Floor And Trench Painted
Steel Grating is an essential structural component of many builds, particularly in commercial and industrial spaces. Steel Grating is specifically designed for high impact, high load applications, such as in walkways, stairs, platforms, and mezzanines. Steel grating is safer, will last longer, and will look better than any other underfoot options for industrial and commercial spaces.
Please get in touch if you are in need of steel grating.
Welded Steel Bar Grating Features:
Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.
The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.
Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Welded Steel Bar Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
| 3 | Cross Bar Pitch | 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self coloures, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China.
We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.

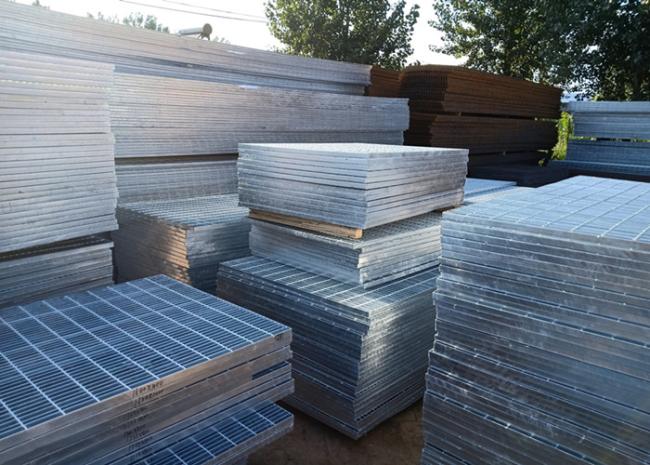

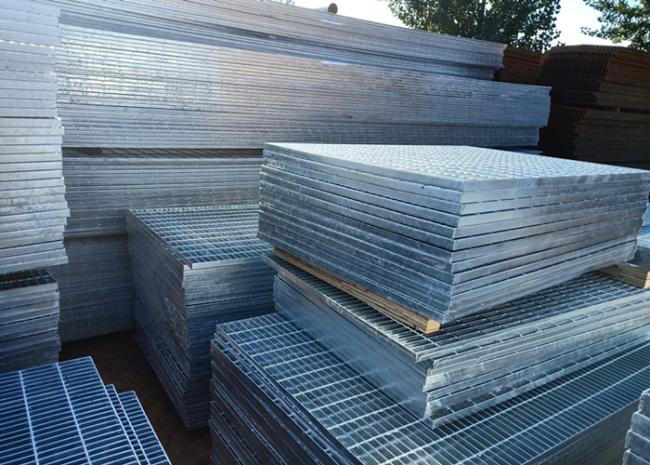

Metal Grate Stair Treads Picture:
