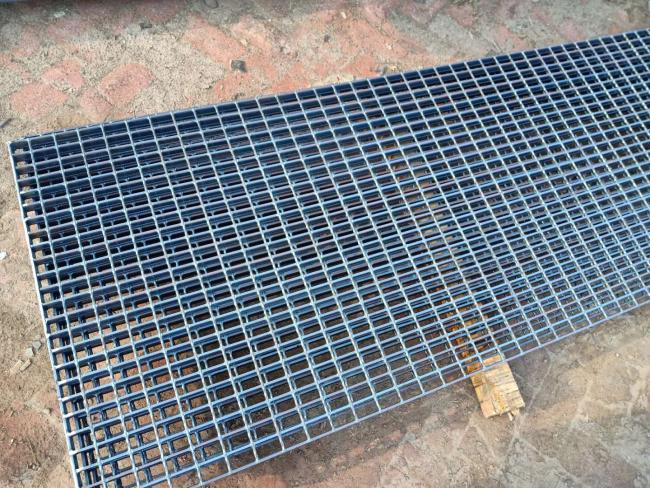

Serrated Industrial Steel Grating Hot dipped Galvanized grate G253/30/100
galvanized grating serrated shaped grating
Description:
Steel grating is welded brating bar and cross bar together, than with galvanized surface treatment, because with it, would be prolong the material service life, and make sure less than 5years to use, also it's easy to installation, save time and cost.
| Common Specification Of Steel Grating | |
| Material Standard |
ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304, Mild steel & Low carbon steel, etc
|
|
Bearing Bar (width*thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment |
untreated(black), hot-dipped galvanized ,powder coated, electroplate, painting or as per customers’ requirement. |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing |
1) LCL(less than one container load): packed with plastic film then on the pallets 2) FCL(full container load): nude packing 3) Other special package :according to customers' requirements. |
| Payment Term |
T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P, Trade assurance |
|
Remarks: Other sizes also can be customized according to customers’ requirement.
|
|
