Floor Drain 15w4 Galvanzied Sealed Surface Compound Steel Grating
15-W-4 Galvanzied Sealed Surface Compound Steel Grating With With Checkered Steel Plate.
Product Description
Compound steel grating is formed of any type of steel grating and checkered plate in different thicknesses. The type JG323/40/100, JG253/30/100 and JG323/60/100 are generally used as base & the checkered plate with 3 mm thickness is used as sealing plate. Sometimes checkered plate with thickness of 4 mm, 5 mm or 6 mm is also used as sealing plate according to customers' requirements.
Product Specification
| NO. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
Product shows

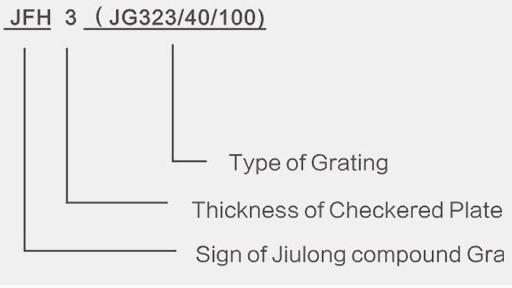

Letters & Numbers in Model Name Respectively Represent

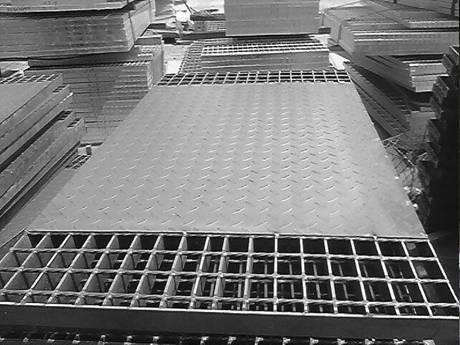

Product Details
Product Features
Compound Steel Bar Grating has high strength, light structure, corrosion resistance, durable and beautiful appearance.

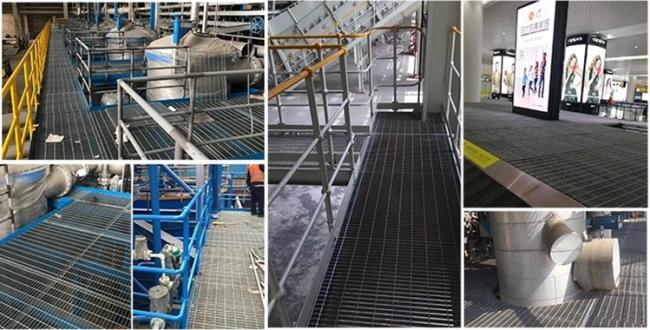

Application
Steel plate/Steel grating has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.
Certificate
Steel grating advantage
Corrosion resistance, Rust resistance.
Anti-slip resistance, Good air circulation.
Good drainage performance, Easy to install and uninstall.
High strength-to-weight performance, Durable and long lifespan.
FAQ
1. Quick response
We will reply our customer's inquiry ASAP within 24 hours.
2. Sample
Free sample is available if our customer are willing to undertake the courier fee.
3. Layout drawing or shop drawing
We can provide the layout drawing or shop drawings for our customers' project solution.
4. Inspection
Our factory supports all our customers or nominated third party to our factory for inspection.
In addition, we can provide the instant photos during the production.
5. Strong package
We will do our best to offer strong package to keep the goods safe and sound when our customer receive them.
6. Timely delivery
Our strong supply capacity can help us to deliver the goods in time.
7. After-sale service
We will track the goods' use condition. Not only providing the tech support, but the solution of goods' quality.
