SS304 Steel Flooring Grating Press-Locked Trench Cover Size 20*4mm And 600mm Width
SS304 Steel Flooring Grating Press-Locked Trench Cover Size 20*4mm And 600mm Width
Products Description
Stormtech slimline channel grates and drains provide efficient water removal with an architectural modern finish.Featuring an award winning design, slimline drainage products are efficient and provide easy access in high traffic areas. Slimline drains create a level entrance to thresholds - the narrow profile provides a seamless integration between internal and external areas. The revolutionary design removes water from the trench using one or multiple outlets. Our high quality range of stainless steel channel drains and linear grates are ideal for contemporary drainage requirements. When large format tiles are selected, Stormtech drains remove the need to crosscut the tiles. In bathrooms, particularly shower areas, the slope of the floor can be made into a uniform direction, without the multiple fall required when using central floor drains.
This increases safety significantly by allowing the use of non-slip tiles, reducing the amount of water pooling on the floor surface and removing the need for steps, hobs and frames, thus reducing trip hazards.
The 304 stainless steel grate provides a prestige finish with design flexibility to allow it to be used in contemporary or classic styles.
- Available in 38mm and 65mm widths
- Product ApplicationsBathrooms
- Suspended Slabs and Balconies
- Thresholds and Doortracks
- Driveways
- Pools and Paved Areas
- Patios, Courtyards and Terraces
- Commercial Applications and Large Scale Projects
- Special Needs Access
|
Parameters |
Data |
|
Bear Bar Type |
Flat Bar, I-Bar, Serrated Bar, etc.. |
|
Bearing Bar Size |
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.. |
|
Bearing Bar Spacing |
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier. |
|
Cross Bar Type |
Twisted Steel Rod, Flat Bar |
|
Cross Bar Size |
3mm, 4mm, 5mm ,6mm or thicker |
|
Cross Bar Spacing |
50mm or 100mm |
|
Bearing Bar Length |
Customerized from 1000mm to 6000mm or more |
|
Cross Bar Length |
Under 1200mm |
|
Material Grade |
Mild Steel(Q235B), Stainless Steel 304 or 316, etc. |
|
Treatment Available |
Hot dipped Galvanized, Anodized, Polished and Powder Coated |
|
Standards |
Steel Grating Standard |
Steel Material Standard |
HDG Coating Standard |
|
China |
YB/T4001-1998 |
GB700-88 |
GB/T13912-92 |
|
USA |
ANSI/NAAMM(MBG531-88) |
ASTM-A36 |
ASTM-A123 |
|
UK |
BS4592-1987 |
BS4360(43A) |
BS729 |
|
Australia |
ASl 657-1992 |
AS3679 |
ASl650 |

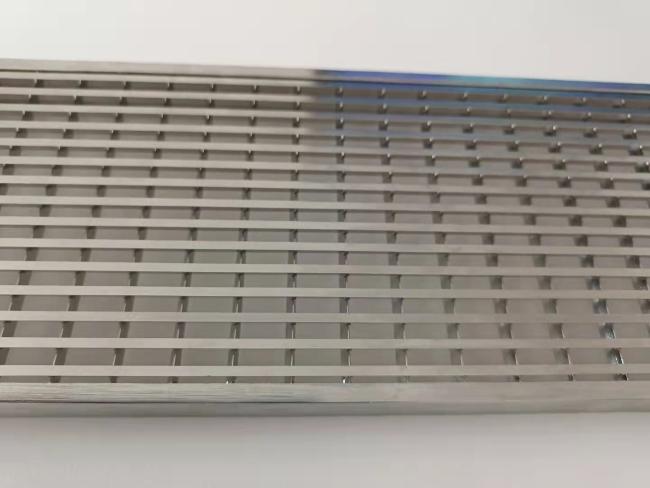

Product display:

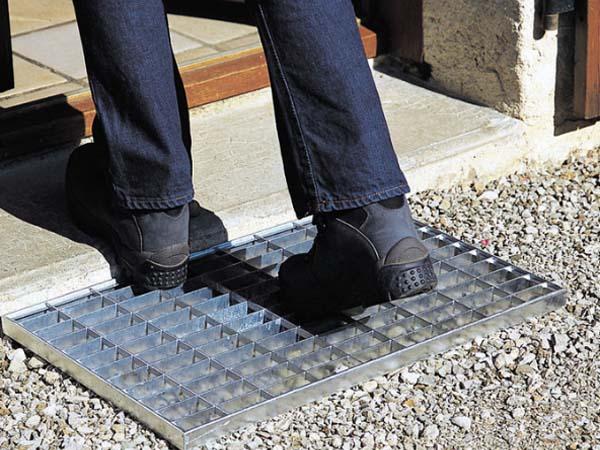

Application
Product certification
FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.
2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us know your requirements.
3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
