Ditch Cover Trench Drain Heavy Duty Metal Grate Q235
Galvanized Steel Driveway Grating Metal Serrated Bar Steel Grating
Product Description

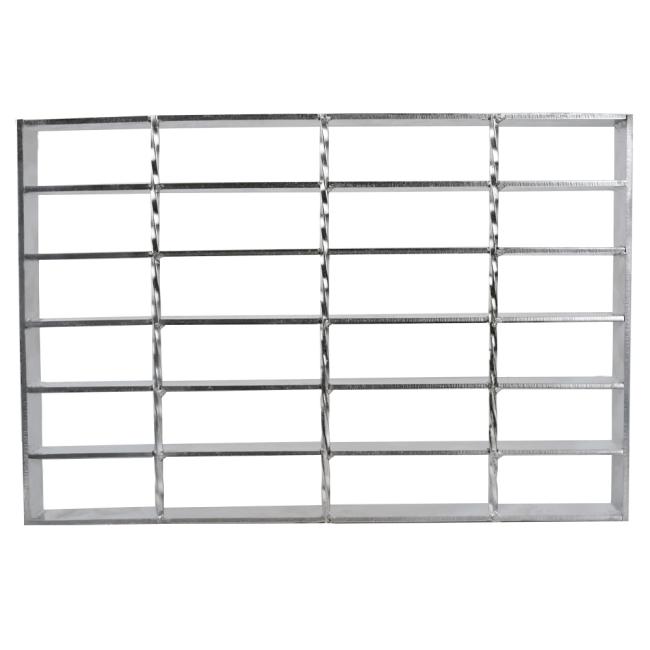

Hot dip galvanized steel grating is made offlat bearing steel and bars lined with certain distances and openingstructures. The original plate panel is welded on the high-pressure-resistancewelding machine, then going through cutting, incision, opening, edging andother deep processing to become the finished steel grating products according tocustomer requirements.
Specification
| Material | Low Carbon Steel/Stainless Steel |
| bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| crossbar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder-coated, pickling, electrolytic polishing, or as customers’ requirement. |
Product parameter
Product Process
Product Application
Galvanized steel grates are widely used in flooring, catwalk, mezzanine,decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, wash rack, ventilation screen, storage rack, window and machinery safe guards, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area.
You also can choose our stainless steel grating if others specials environmental challenge. The stainless steel grating is used in and is also used in many gas and oil producers,chemical plants,food processing facilities and other commercial,architectural applications.
FAQ
1.Should the customer pay for the sample, How much is it? All samples are free. but you may need to provide courier fees.
3. Lead time?
7-10 days per container, Challenge the industry's fastest time!
4. I need special material, can you help?
Yes, high standards material and high zinc thick can be chosen.
5. How can I get a quote?
Contact us with specification, size, quantity, and your port, then a fast quote with being sent.
