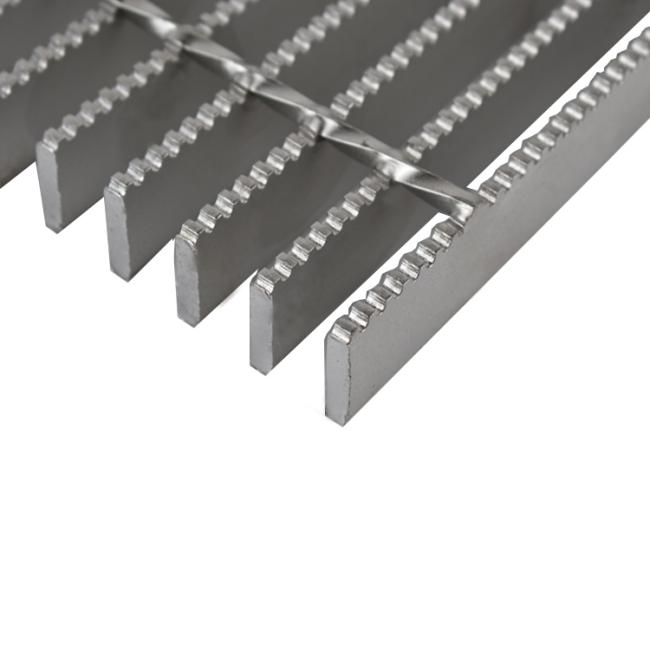

SS 304 Steel Bar Grating Outdoor Drainage Stainless Steel Grating Serrated Anti Slip grating
Stainless 304 Drainage Steel Bar Grating Serrated Anti Slip Grating
Description
Stainless steel bar grating is made by welding or press locking available in varied bearing bar shapes and sizes, especially ideal for flooring and walkway in corrosive environments such as chemical industry, food processing, hydro processing and engineering.
Stainless Steel Gratings
Stainless Steel 304 Grating
Material: SS 304
Panel width: 95mm
Length: 1000mm
Height: 20mm
Distance between Each Ribs: 10mm
Load Carry capacity: 1000Kgs
Application: Grating for the Run of Water Drainage.
Usage: Outdoor & Indoor use.
Grating Applications
It can provide durable grating solution for corrosive resistance and minimum carbide precipitation are important considerations, typical applications include stairs and platforms for chemical production and storage, food processing and water and waste water treatment plant.
|
Parameters |
Data |
|
Bear Bar Type |
Flat Bar, I-Bar, Serrated Bar, etc.. |
|
Bearing Bar Size |
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.. |
|
Bearing Bar Spacing |
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier. |
|
Cross Bar Type |
Twisted Steel Rod, Flat Bar |
|
Cross Bar Size |
3mm, 4mm, 5mm ,6mm or thicker |
|
Cross Bar Spacing |
50mm or 100mm |
|
Bearing Bar Length |
Customerized from 1000mm to 6000mm or more |
|
Cross Bar Length |
Under 1200mm |
|
Material Grade |
Mild Steel(Q235B), Stainless Steel 304 or 316, etc. |
|
Treatment Available |
Hot dipped Galvanized, Anodized, Polished and Powder Coated |
|
Standards |
Steel Grating Standard |
Steel Material Standard |
HDG Coating Standard |
|
China |
YB/T4001-1998 |
GB700-88 |
GB/T13912-92 |
|
USA |
ANSI/NAAMM(MBG531-88) |
ASTM-A36 |
ASTM-A123 |
|
UK |
BS4592-1987 |
BS4360(43A) |
BS729 |
|
Australia |
ASl 657-1992 |
AS3679 |
ASl650 |
Product display:
Application:
- platform and walkway.
- Platform steel grating: widely used in parking lot, power plant, factory, waste treatment factories. Also combines with stair treads to work for people.
- Walkway steel grating: commonly used in port, offshore, garden, pedestrian street. Easy to install and uninstall. Permanent or temporary applications are available.
- Walkway steel grating is used extensively with good air and water ventilation. In addition, it's available for pedestrian who wear high-heel shoes or roller skates, also suitable for passing of wheel chairs, baby carriage and other wheel equipment.
Product certification
FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.
2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us know your requirements.
3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
