Serrated Stainless 316 Heavy Duty Steel Grating For Drainage
Stainless 304 Drainage Steel Bar Grating Serrated Anti Slip Grate
Stainless steel bar grating is made by welding or press locking available in varied bearing bar shapes and sizes, especially ideal for flooring and walkway in corrosive environments such as chemical industry, food processing, hydro processing and engineering.
Stainless Steel Gratings
Stainless Steel 304 Grating
Material: SS 304
Panel width: 95mm
Length: 1000mm
Height: 20mm
Distance between Each Ribs: 10mm
Load Carry capacity: 1000Kgs
Application: Grating for the Run of Water Drainage.
Usage: Outdoor & Indoor use.
Applications of SS Grates
Stainless bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed:
Power plant;
Chemical plant;
Oil Refinery;
Steel plant;
Machinery plant;
Paper-making factory;
Cement plant;
Civil engineering;
Wastewater treatment;
Pharmacy industry;
Food processing.
Parameters | Data |
Bear Bar Type | Flat Bar, I-Bar, Serrated Bar, etc.. |
Bearing Bar Size | 20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.. |
Bearing Bar Spacing | 20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier. |
Cross Bar Type | Twisted Steel Rod, Flat Bar |
Cross Bar Size | 3mm, 4mm, 5mm ,6mm or thicker |
Cross Bar Spacing | 50mm or 100mm |
Bearing Bar Length | Customerized from 1000mm to 6000mm or more |
Cross Bar Length | Under 1200mm |
Material Grade | Mild Steel(Q235B), Stainless Steel 304 or 316, etc. |
Treatment Available | Hot dipped Galvanized, Anodized, Polished and Powder Coated |
Standards | Steel Grating Standard | Steel Material Standard | HDG Coating Standard |
China | YB/T4001-1998 | GB700-88 | GB/T13912-92 |
USA | ANSI/NAAMM(MBG531-88) | ASTM-A36 | ASTM-A123 |
UK | BS4592-1987 | BS4360(43A) | BS729 |
Australia | ASl 657-1992 | AS3679 | ASl650 |

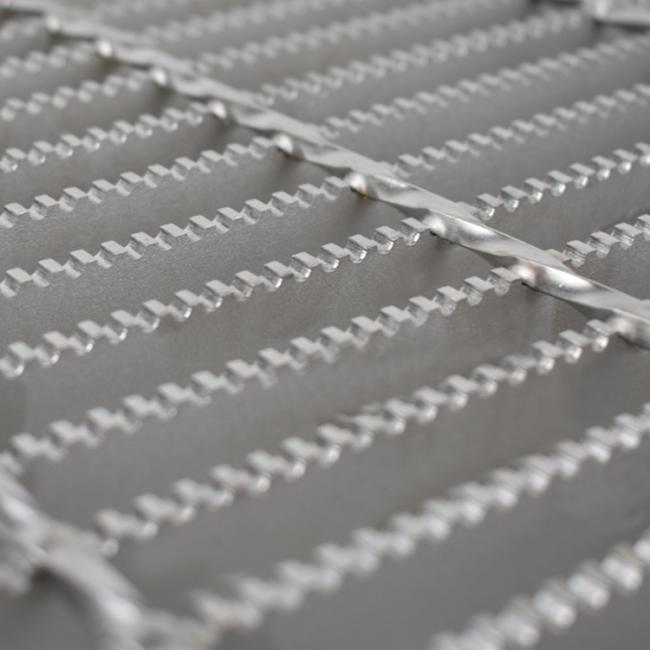

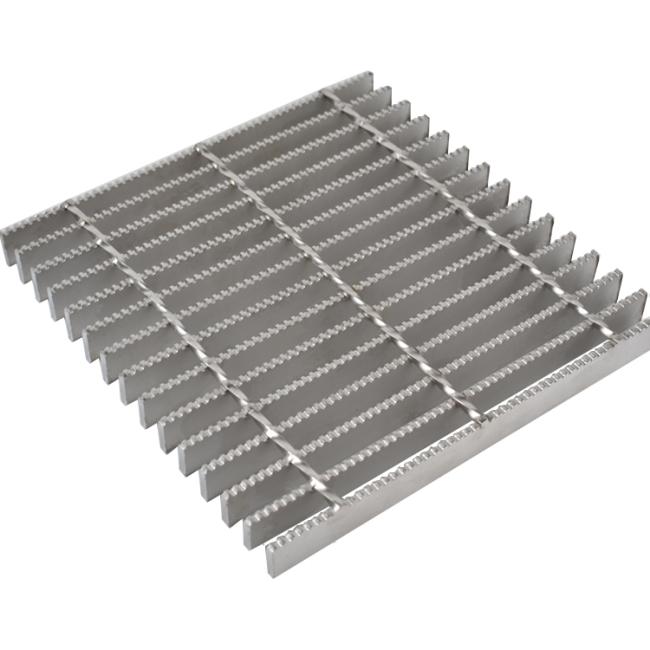

Product display:
Application:
platform and walkway.
Platform steel grating: widely used in parking lot, power plant, factory, waste treatment factories. Also combines with stair treads to work for people.
Walkway steel grating: commonly used in port, offshore, garden, pedestrian street. Easy to install and uninstall. Permanent or temporary applications are available.
Walkway steel grating is used extensively with good air and water ventilation. In addition, it's available for pedestrian who wear high-heel shoes or roller skates, also suitable for passing of wheel chairs, baby carriage and other wheel equipment.
Product certification
FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.
2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us know your requirements.
3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
