Painted Side Walkway Industrial Steel Grating ZT302/30/50
Painted Or Galvanized Heavy Duty Steel Grating , 555 / 40 /100 For Trench Cover
Description:
Painted steel bar grating is a series of carbon steel bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel finished with one shop coat of paint.
The paint protects the finished grating product during transit while increasing its visibility, which can reduce on-the-job accidents.
Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China.
We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.
Steel Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
| 3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

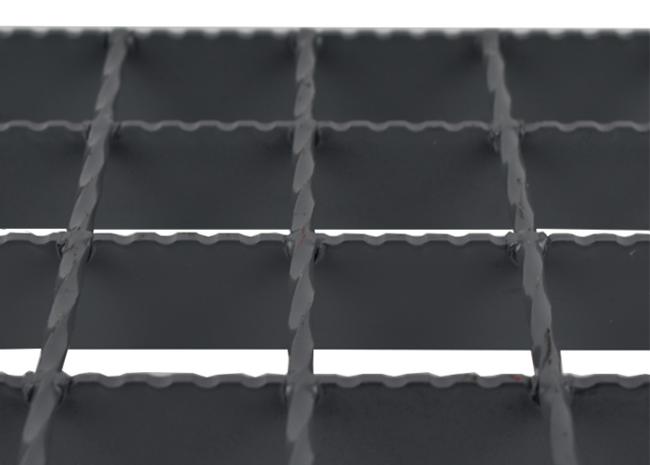

Grating Picture:
